GBJ3501, GBJ35005 - Single-Phase 35.0A Glass Passivated Bridge Rectifier

SMC Diode

📥 Download Datasheet

GBJ3501 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBJ3501, GBJ35005. Please refer to the document for exact specifications by model.

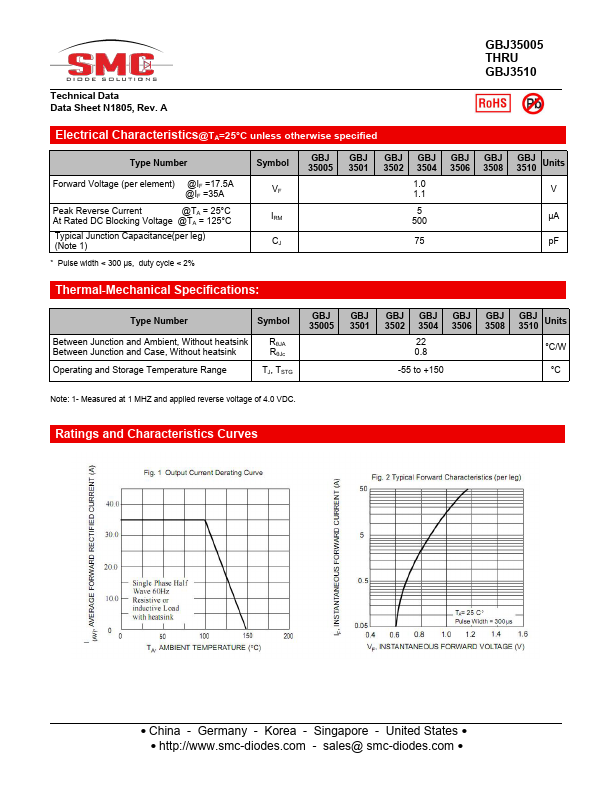

datasheet Preview Page 2

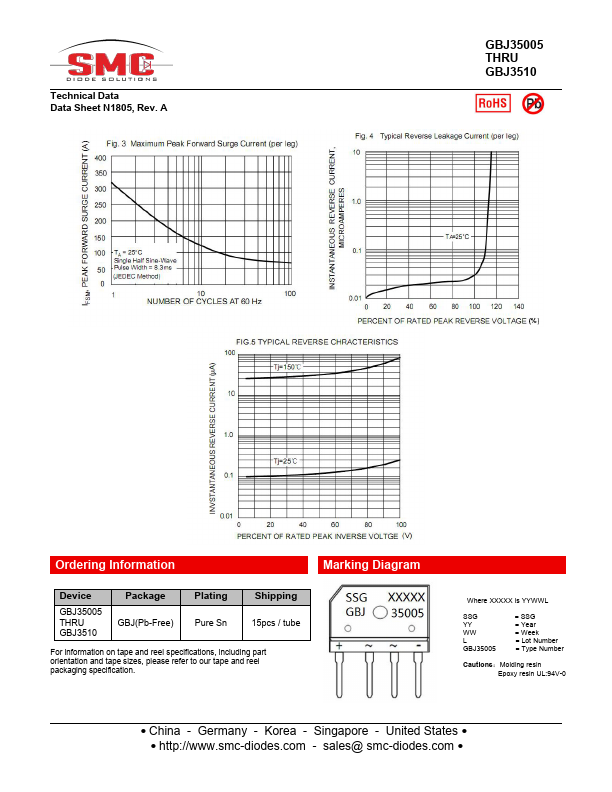

datasheet Preview Page 3

Datasheet Details

Part number	GBJ3501, GBJ35005
Manufacturer	SMC Diode
File Size	411.83 KB
Description	Single-Phase 35.0A Glass Passivated Bridge Rectifier
Datasheet	GBJ35005-SMCDiode.pdf
Note	This datasheet PDF includes multiple part numbers: GBJ3501, GBJ35005. Please refer to the document for exact specifications by model.

GBJ3501 Product details

Features

Glass passivated die construction.
Low forward voltage drop.
High current capability.
High surge current capability.
Plastic material-UL flammability 94V-0.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: GBJ, Molded plastic.
Terminals: Plated leads solderable per MIL-STD-202, Method 208.
Polarity: as marked on case.
