GBJ35005 - Single-Phase 35.0A Glass Passivated Bridge Rectifier

SMC Diode

📥 Download Datasheet

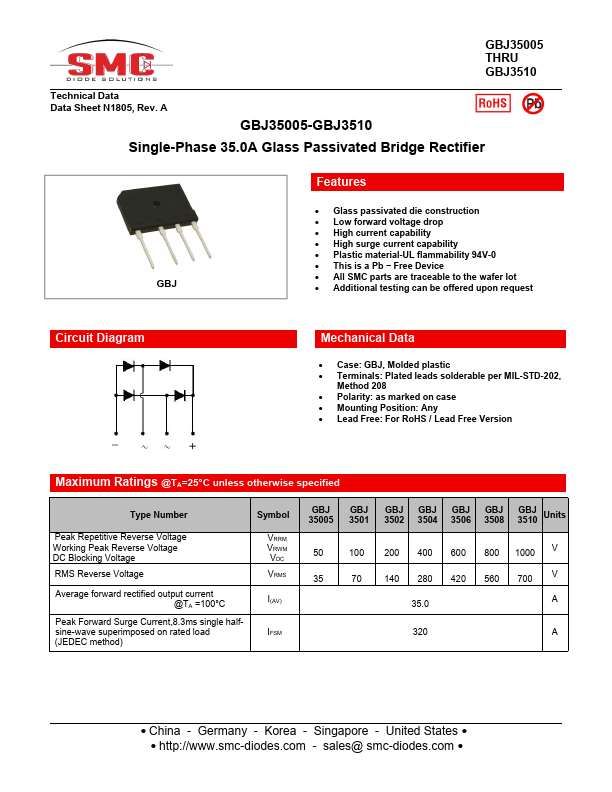

GBJ35005 Datasheet Preview — Preview of GBJ35005 PDF

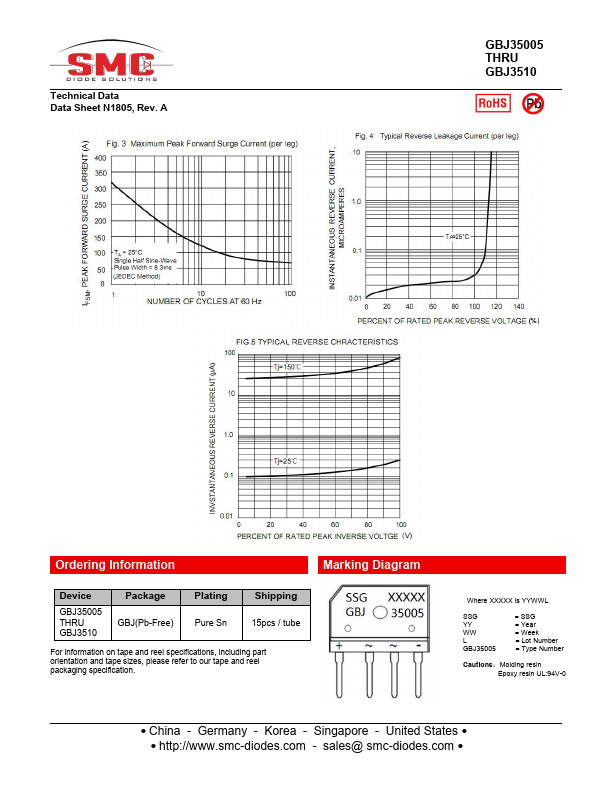

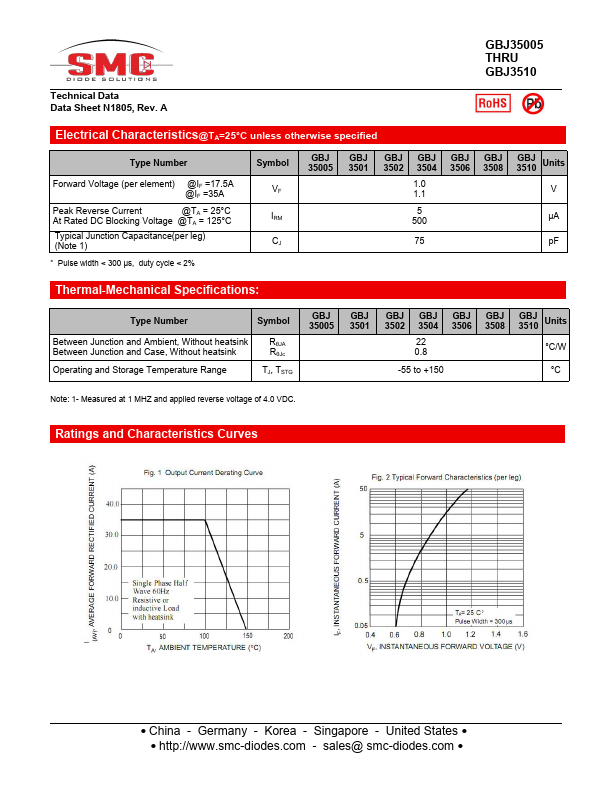

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GBJ35005
Manufacturer	SMC Diode
File Size	411.83 KB
Description	Single-Phase 35.0A Glass Passivated Bridge Rectifier
Datasheet	GBJ35005-SMCDiode.pdf

GBJ35005 Product details

Features

Glass passivated die construction.
Low forward voltage drop.
High current capability.
High surge current capability.
Plastic material-UL flammability 94V-0.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: GBJ, Molded plastic.
Terminals: Plated leads solderable per MIL-STD-202, Method 208.
Polarity: as marked on case.
