BAV20W, BAV19W FAST SWITCHING DIODE

SMC Diode

Description

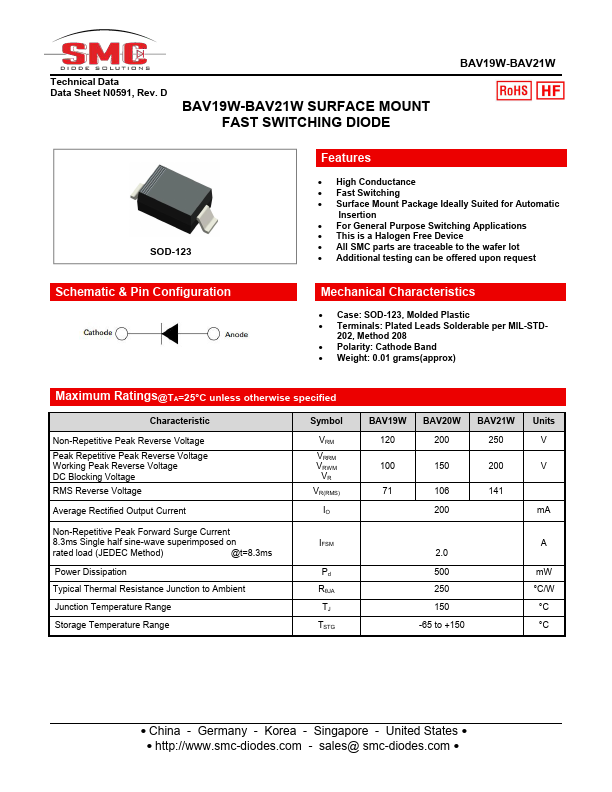

Technical Data Data Sheet N0591, Rev.D BAV19W-BAV21W SURFACE MOUNT FAST SWITCHING DIODE BAV19W-BAV21W SOD-123 .

📥 Download Datasheet

BAV20W Datasheet Preview — This datasheet PDF includes multiple part numbers: BAV20W, BAV19W. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BAV20W, BAV19W
Manufacturer: SMC Diode
File Size: 326.05 KB
Datasheet: BAV19W-SMCDiode.pdf
Description: FAST SWITCHING DIODE
Note: This datasheet PDF includes multiple part numbers: BAV20W, BAV19W.
Please refer to the document for exact specifications by model.

Features

* High Conductance
* Fast Switching
* Surface Mount Package Ideally Suited for Automatic Insertion

Applications

* This is a Halogen Free Device
* All SMC parts are traceable to the wafer lot
* Additional testing can be offered upon request Schematic & Pin Configuration Mechanical Characteristics
* Case: SOD-123, Molded Plastic
* Terminals: Plated Leads Solderable per MIL-STD- 202, Method
