83CNQ100, 83CNQ080 - SCHOTTKY RECTIFIER

83CNQ100 Description

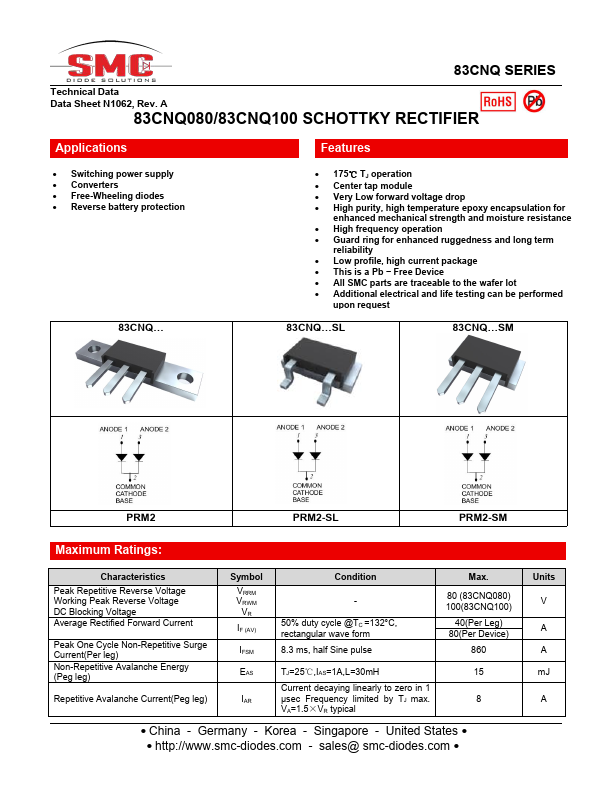

83CNQ SERIES Technical Data Data Sheet N1062, Rev.A 83CNQ080/83CNQ100 SCHOTTKY RECTIFIER Applications * Switching power supply * Converters .

83CNQ100 Features

* 175℃ TJ operation
* Center tap module
* Very Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability

83CNQ100 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 83CNQ100, 83CNQ080. Please refer to the document for exact specifications by model.

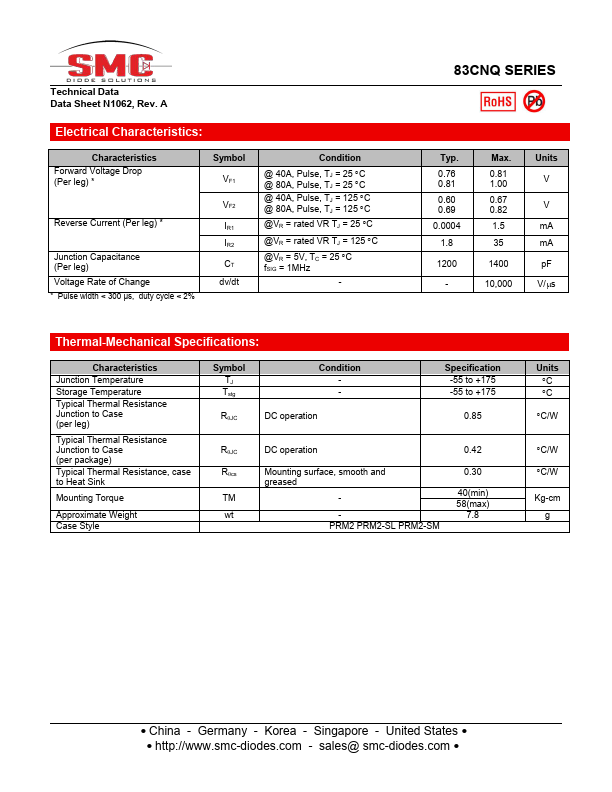

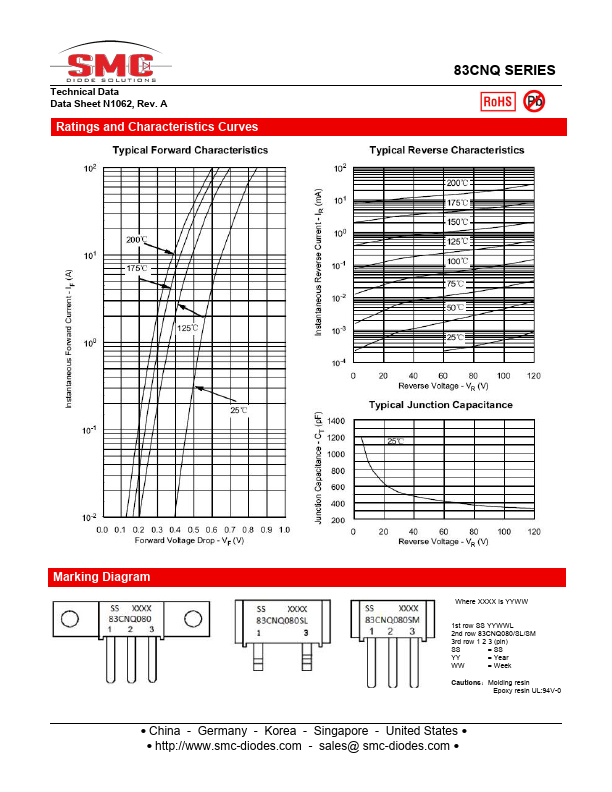

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
83CNQ100, 83CNQ080
Manufacturer
SMC Diode
File Size
403.99 KB
Datasheet
83CNQ080-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 83CNQ100, 83CNQ080.
Please refer to the document for exact specifications by model.
