3.0SMI5.0A - SURFACE MOUNT TRANSIENT VOLTAGESUPPRESSOR

SMC Diode

📥 Download Datasheet

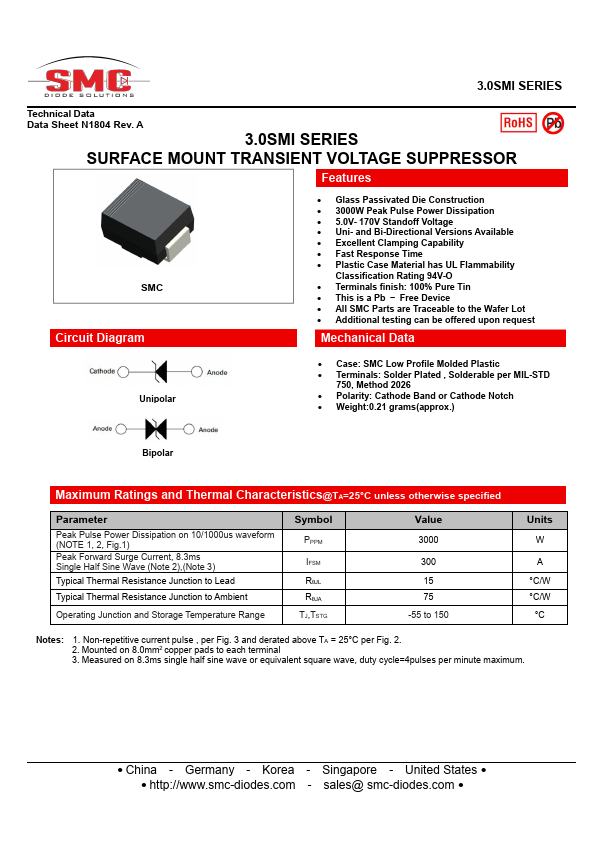

3.0SMI5.0A Datasheet Preview — Preview of 3.0SMI5.0A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	3.0SMI5.0A
Manufacturer	SMC Diode
File Size	384.42 KB
Description	SURFACE MOUNT TRANSIENT VOLTAGESUPPRESSOR
Datasheet	3.0SMI5.0A-SMCDiode.pdf

3.0SMI5.0A Product details

Features

SMC Circuit Diagram.
Glass Passivated Die Construction.
3000W Peak Pulse Power Dissipation.
5.0V- 170V Standoff Voltage.
Uni- and Bi-Directional Versions Available.
Excellent Clamping Capability.
Fast Response Time.
Plastic Case Material has UL Flammability Classification Rating 94V-O.
Terminals finish: 100% Pure Tin.
This is a Pb.
Free Device.
All SMC Parts are Traceable to the Wafer Lot.
Additional testing can be offered upon re.
