1N5247

The 1N5247 is ZENER DIODE designed by SMC Diode.

Product Overview

SMC Diode

📥 Download Datasheet

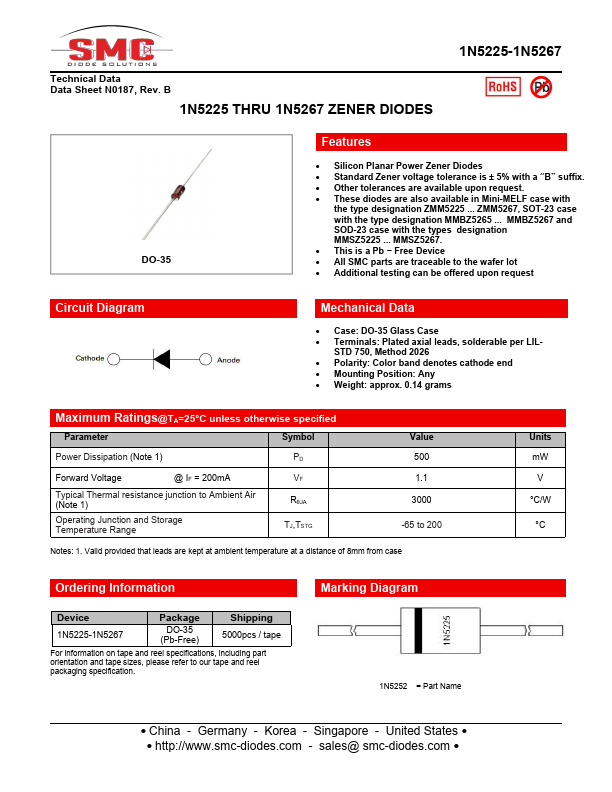

1N5247 ZENER DIODE by SMC Diode - Datasheet Preview — Datasheet preview – 1N5247

Datasheet Details

Part number	1N5247, 1N5225
Manufacturer	SMC Diode
File Size	367.83 KB
Description	ZENER DIODE
Datasheet	1N5225-SMCDiode.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5247, 1N5225. Please refer to the document for exact specifications by model.

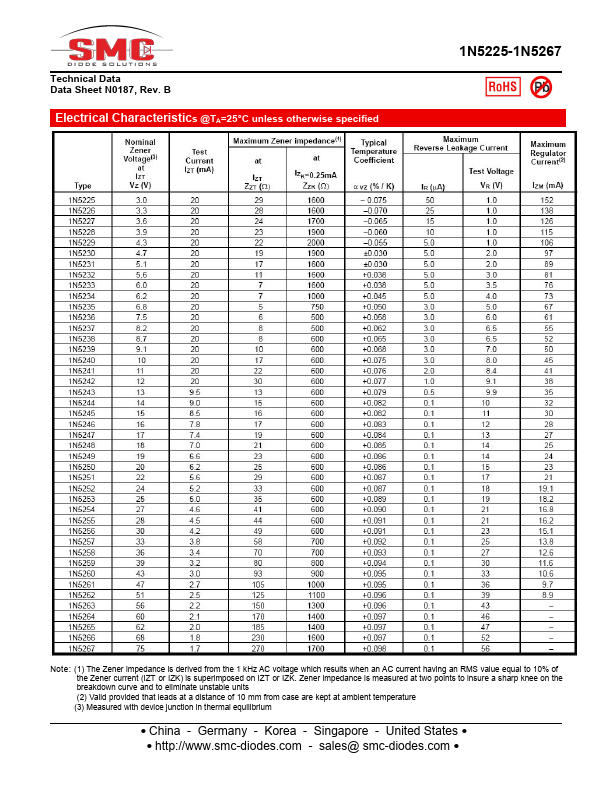

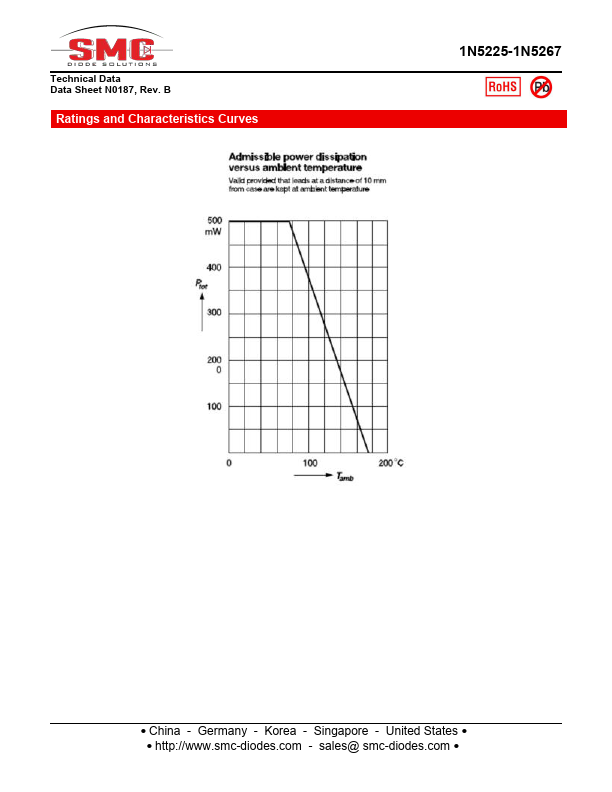

Additional preview pages of the 1N5247 datasheet.

Product details

Features

Silicon Planar Power Zener Diodes.
Standard Zener voltage tolerance is ± 5% with a “B” suffix.
Other tolerances are available upon request.
These diodes are also available in Mini-MELF case with the type designation ZMM5225 ZMM5267, SOT-23 case with the type designation MMBZ5265 MMBZ5267 and SOD-23 case with the types designation MMSZ5225 MMSZ5267.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be.
