1N4448WS

The 1N4448WS is MOUNT FAST SWITCHING DIODE designed by SMC Diode.

Product Overview

SMC Diode

📥 Download Datasheet

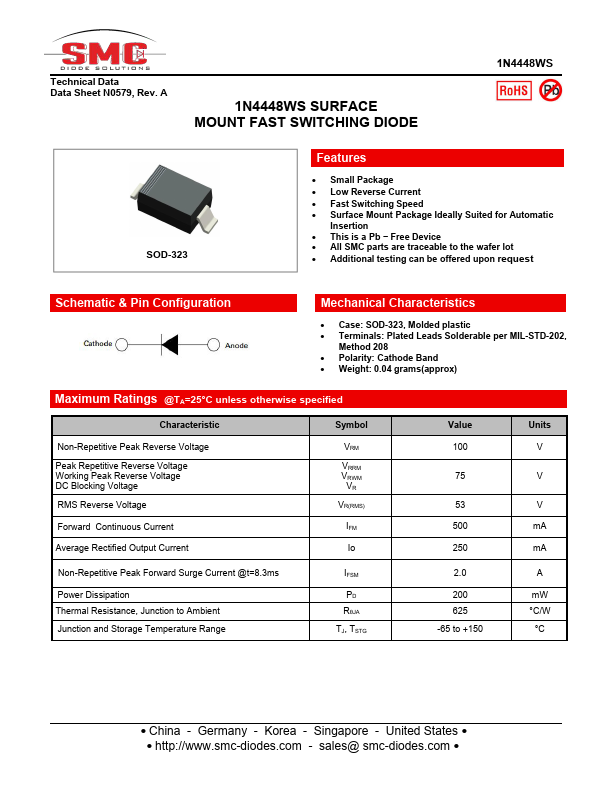

1N4448WS MOUNT FAST SWITCHING DIODE by SMC Diode - Datasheet Preview — Datasheet preview – 1N4448WS

Datasheet Details

Part number	1N4448WS
Manufacturer	SMC Diode
File Size	304.67 KB
Description	MOUNT FAST SWITCHING DIODE
Datasheet	1N4448WS-SMCDiode.pdf

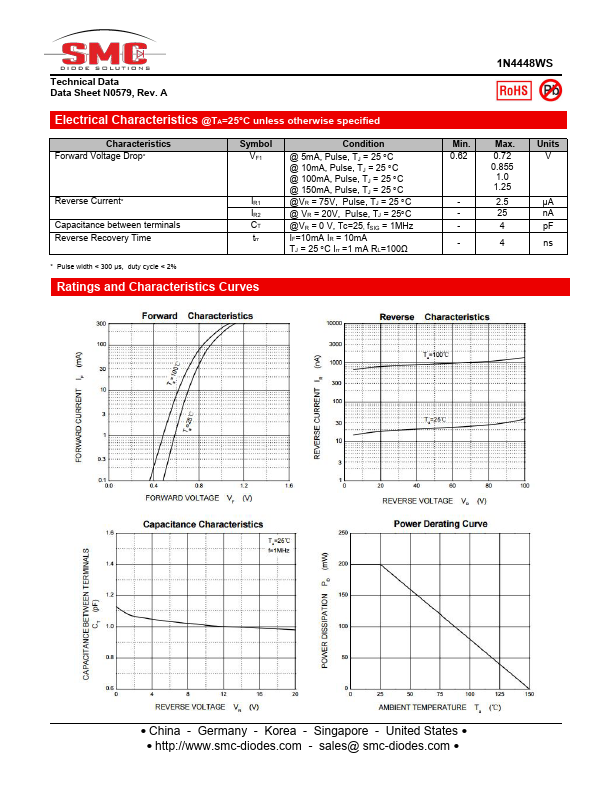

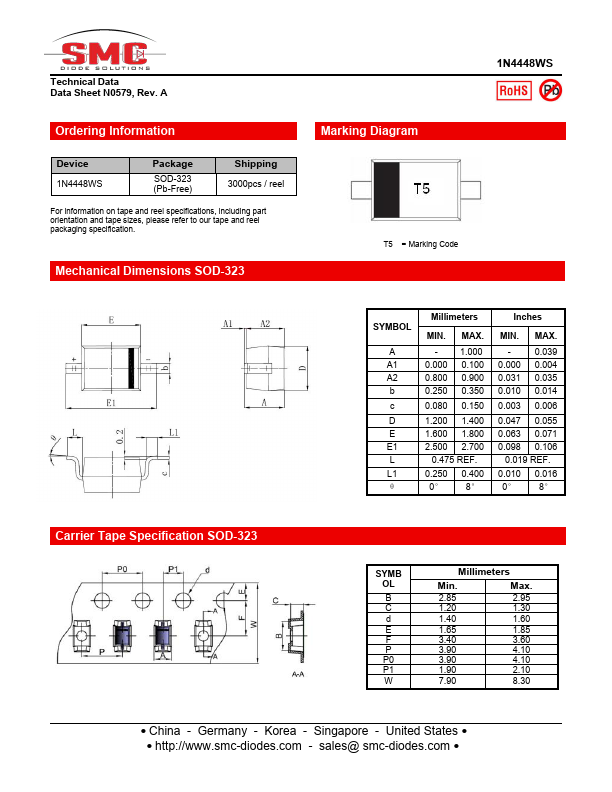

Additional preview pages of the 1N4448WS datasheet.

Product details

Features

Small Package.
Low Reverse Current.
Fast Switching Speed.
Surface Mount Package Ideally Suited for Automatic Insertion.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Schematic & Pin Configuration Mechanical Characteristics.
Case: SOD-323, Molded plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Weight: 0.04 gra.
