1N4005FL, 1N4001FL - General Purpose Plastic Rectifier

SMC Diode

📥 Download Datasheet

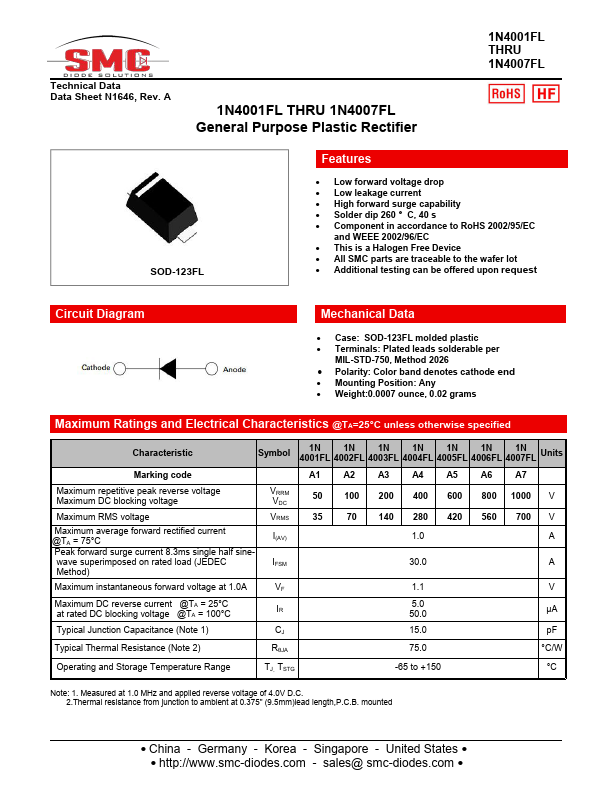

1N4005FL Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N4005FL, 1N4001FL. Please refer to the document for exact specifications by model.

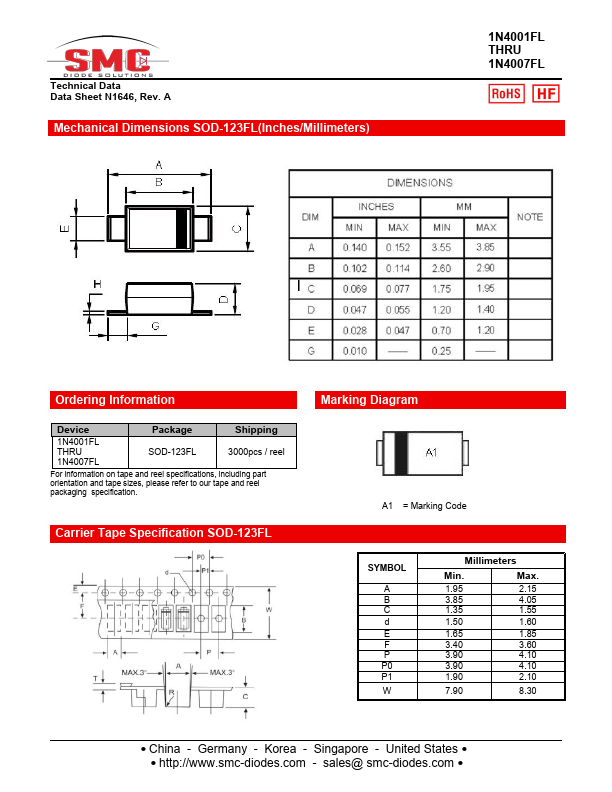

datasheet Preview Page 2

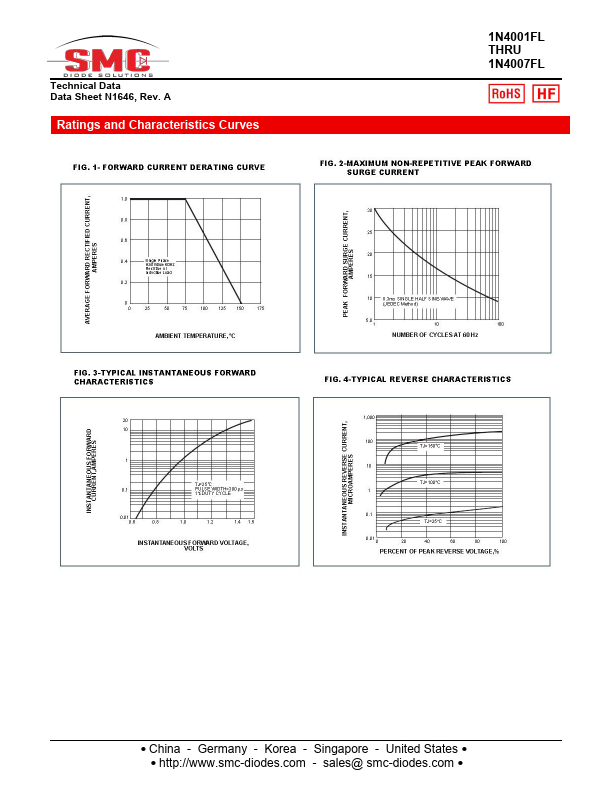

datasheet Preview Page 3

Datasheet Details

Part number	1N4005FL, 1N4001FL
Manufacturer	SMC Diode
File Size	314.64 KB
Description	General Purpose Plastic Rectifier
Datasheet	1N4001FL-SMCDiode.pdf
Note	This datasheet PDF includes multiple part numbers: 1N4005FL, 1N4001FL. Please refer to the document for exact specifications by model.

1N4005FL Product details

Features

Low forward voltage drop.
Low leakage current.
High forward surge capability.
Solder dip 260 °C, 40 s.
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
This is a Halogen Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: SOD-123FL molded plastic.
Terminals: Plated leads solderable per MIL-STD-750, Method 2026.
Polarity: Color band.
