1N4003, 1N4001 - 1.0 SILICON RECTIFIER

SMC Diode

📥 Download Datasheet

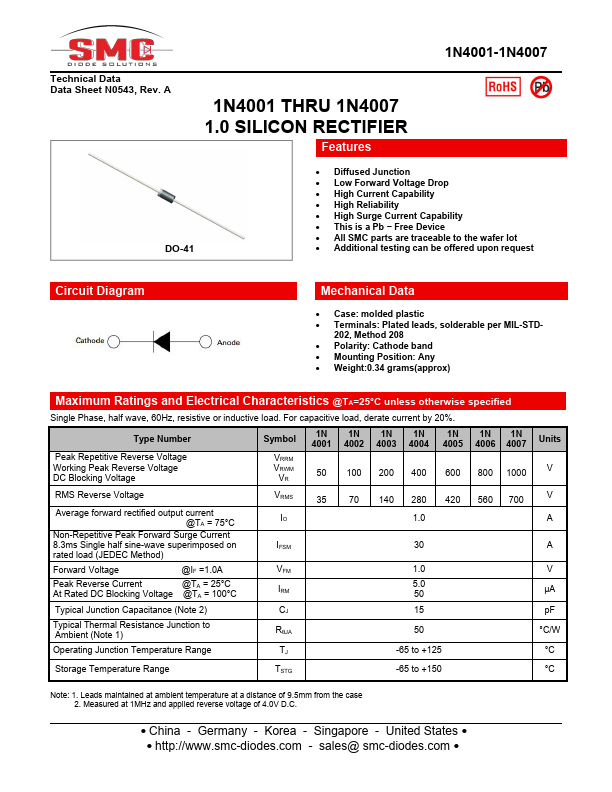

1N4003 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N4003, 1N4001. Please refer to the document for exact specifications by model.

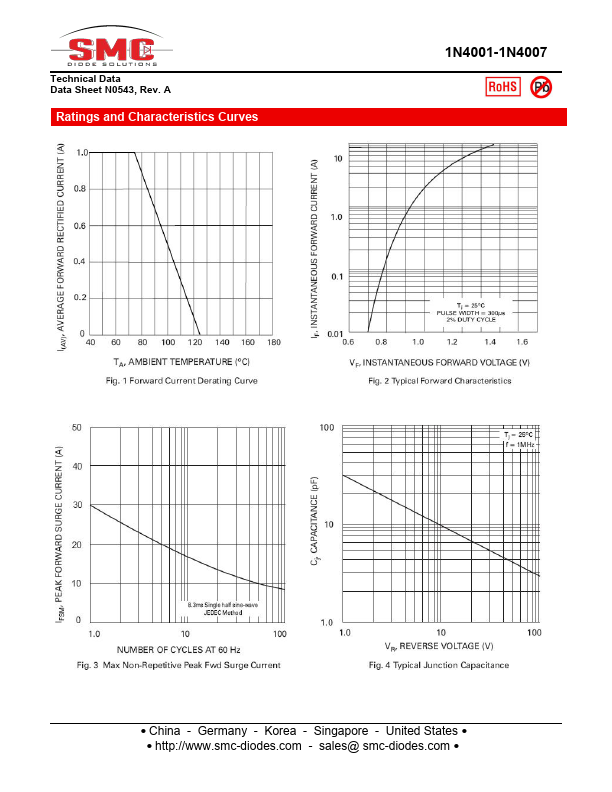

datasheet Preview Page 2

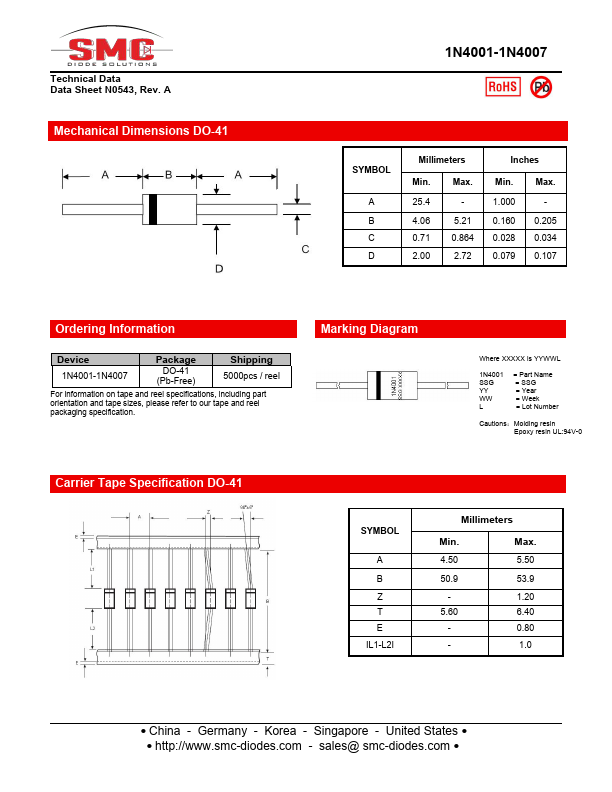

datasheet Preview Page 3

Datasheet Details

Part number	1N4003, 1N4001
Manufacturer	SMC Diode
File Size	307.72 KB
Description	1.0 SILICON RECTIFIER
Datasheet	1N4001-SMCDiode.pdf
Note	This datasheet PDF includes multiple part numbers: 1N4003, 1N4001. Please refer to the document for exact specifications by model.

1N4003 Product details

Features

DO-41.
Diffused Junction.
Low Forward Voltage Drop.
High Current Capability.
High Reliability.
High Surge Current Capability.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: molded plastic.
Terminals: Plated leads, solderable per MIL-STD- 202, Method 208.
Polarity: Cathode band.
Mounting Position: Any.
Weight.
