SG2567RD312893UUD - 2GByte (256Mx72) DDR3 SDRAM Module

The SG2567RD312893UUD by SMART Modular Technologies is a 2GByte (256Mx72) DDR3 SDRAM Module. Below is the official datasheet preview.

Datasheet Details

Part number	SG2567RD312893UUD
Manufacturer	SMART Modular Technologies
File Size	311.78 KB
Description	2GByte (256Mx72) DDR3 SDRAM Module
Datasheet	SG2567RD312893UUD-SMARTModularTechnologies.pdf

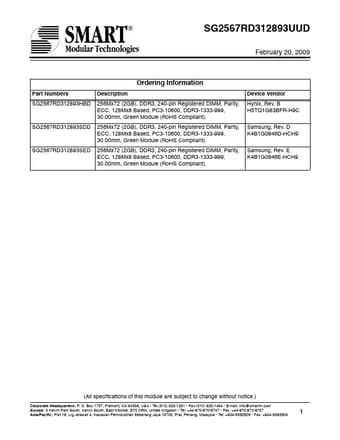

Additional preview pages of the SG2567RD312893UUD datasheet.

256Mx72 (2GB), DDR3, 240-pin Registered DIMM, Parity, ECC, 128Mx8 Based, PC3-10600, DDR3-1333-999, 30.00mm, Green Module (RoHS Compliant).

Standard = JEDEC Configuration = ECC Number of Module Ranks = 2 Number of Devices = 18 VDD = VDDQ = 1.5V VDDSPD = 1.7V to 3.6V Cycle Time = 1.5ns CAS Latency = 6, 8, 9 Additive Latency = 0, CL-1, and CL-2 CAS Write Latency (CWL) = 5, 6, 7 Burst Length = BC4, BL8, BC4 or BL8 (on the fly) Burst Length = Nibble.
