SA5888 5-ch BTL Driver

SA5888 Description

SA5888 5-CH BTL DRIVER FOR DVD PLAYER WITH DISC BIDIRECTIONAL DRIVER AND TWO VARIABLE REGULATORS .
The SA5888 is a five-channel BTL driver IC for driving the motors and actuators in products such as CD - ROM / DVD drivers.

SA5888 Features

* Wide dynamic range (4.0V (Typ. ) when VCC = 8V, PVCC =5V, and RL = 8 ).
* Level shift circuit on chip.
* Thermal shutdown circuit on chip.
* Mute mode built-in.
* Two regulator controllers built-in.
* Five drivers build-in: dual actuator drivers, sled motor driver, spindle d

SA5888 Applications

* CD
* CD-ROM
* DVD BLOCK DIAGRAM HANGZHOU SILAN MICROELECTRONICS CO. ,LTD Http: www. silan. com. cn REV:1.1 2006.10.31 Page 1 of 8 SA5888 ABSOLUTE MAXIMUM RATINGS (Otherwise specified, Tamb=25°C) Characteristics Power Supply Voltage Power Dissipation Operating Temperature Storage Tempe

📥 Download Datasheet

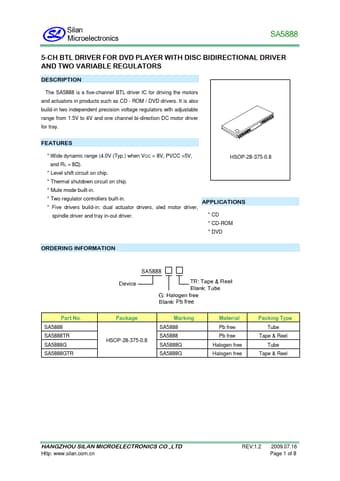

Preview of SA5888 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA5888
Manufacturer
SL
File Size
225.90 KB
Datasheet
SA5888_SL.pdf
Description
5-ch BTL Driver
