SGC-4363Z - Silicon Germanium Cascadable Gain Block

SIRENZA MICRODEVICES

The SGC-4363Z by SIRENZA MICRODEVICES is a Silicon Germanium Cascadable Gain Block. Below is the official datasheet preview.

📥 Download Datasheet

SGC-4363Z Silicon Germanium Cascadable Gain Block by SIRENZA MICRODEVICES - Datasheet Preview — Official preview page of the **SGC-4363Z** Silicon Germanium Cascadable Gain Block datasheet (SIRENZA MICRODEVICES).

Datasheet Details

Part number	SGC-4363Z
Manufacturer	SIRENZA MICRODEVICES
File Size	308.54 KB
Description	Silicon Germanium Cascadable Gain Block
Datasheet	SGC-4363Z_SIRENZAMICRODEVICES.pdf
Additional preview pages of the SGC-4363Z datasheet.

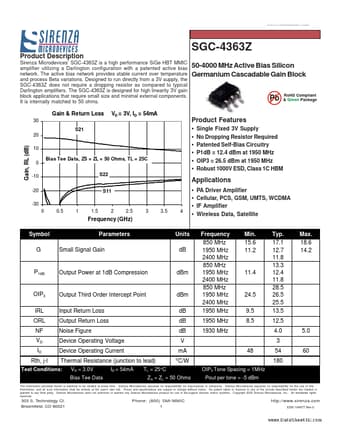

SGC-4363Z Product details

Description

Sirenza Microdevices’ SGC-4363Z is a high performance SiGe HBT MMIC amplifier utilizing a Darlington configuration with a patented active bias network.

Features

Single Fixed 3V Supply.
No Dropping Resistor Required.
Patented Self-Bias Circuitry.
P1dB = 12.4 dBm at 1950 MHz.
OIP3 = 26.5 dBm at 1950 MHz.
Robust 1000V ESD, Class 1C HBM RoHS Compliant & Green Package Gain & Return Loss 30 S21 20 VD = 3V, ID = 54mA Gain, RL (dB) 10 0 -10 -20 -30 0 0.5 1 1.5 2 2.5 3 3.5 4 Bias Tee Data, ZS = ZL = 50 Ohms, TL = 25C S22 S11 Frequency (GHz).
