ML5825 - 2.4GHz to 5.8GHz Frequency Translator

Name: ML5825
SKU: ML5825-669674

SIRENZA MICRODEVICES

The ML5825 by SIRENZA MICRODEVICES is a 2.4GHz to 5.8GHz Frequency Translator. Below is the official datasheet preview.

Datasheet Details

Part number	ML5825
Manufacturer	SIRENZA MICRODEVICES
File Size	278.50 KB
Description	2.4GHz to 5.8GHz Frequency Translator
Datasheet	ML5825_SIRENZAMICRODEVICES.pdf

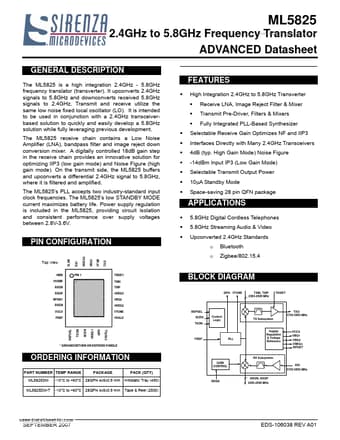

Additional preview pages of the ML5825 datasheet.

The ML5825 is a high integration 2.4GHz - 5.8GHz frequency translator (transverter).

High Integration 2.4GHz to 5.8GHz Transverter.
Receive LNA, Image Reject Filter & Mixer Transmit Pre-Driver, Filters & Mixers Fully Integrated PLL-Based Synthesizer Selectable Receive Gain Optimizes NF and IIP3 Interfaces Directly with Many 2.4GHz Transceivers 4dB (typ. High Gain Mode) Noise Figure -14dBm Input IP3 (Low Gain Mode) Selectable Transmit Output Power 10μA Standby Mode Space-saving 28 pin QFN package.
