MBR6035PT - Schottky Barrier Diodes

Download the MBR6035PT datasheet PDF. This datasheet also covers the MBR6030PT variant, as both devices belong to the same schottky barrier diodes family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MBR6030PT-SIRECTIFIER.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MBR6035PT
Manufacturer SIRECTIFIER
File Size 137.37 KB
Description Schottky Barrier Diodes
Datasheet download datasheet MBR6035PT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBR6035PT 60 Ampere Dual Common Cathode Switch Mode Schottky Barrier Rectifiers Thinki Semiconductor
MBR6035PT 60A SCHOTTKY BARRIER RECTIFIER Diodes Incorporated
MBR6035PT Schottky Barrier Rectifiers Taiwan Semiconductor
MBR6035PT Schottky Diode Multicomp
MBR6035PF SCHOTTKY RECTIFIERS Motorola

Other Datasheets by SIRECTIFIER

Part Number Description
MBR6030PT Schottky Barrier Diodes
MBR6040PT Schottky Barrier Diodes
MBR6045PT Schottky Barrier Diodes
MBR10100 Low IRRM Schottky Barrier Diodes
MBR1030 Schottky Barrier Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

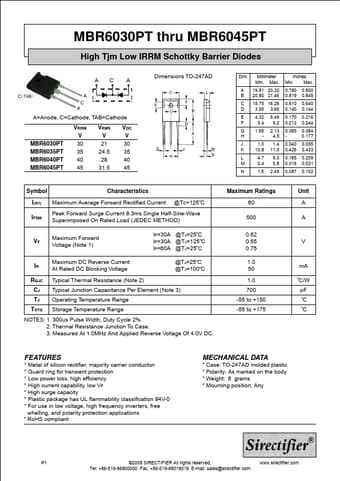

MBR6030PT thru MBR6045PT High Tjm Low IRRM Schottky Barrier Diodes AC A C(TAB) A C A A=Anode, C=Cathode, TAB=Cathode MBR6030PT MBR6035PT MBR6040PT MBR6045PT VRRM V 30 35 40 45 VRMS V 21 24.5 28 31.5 VDC V 30 35 40 45 Dimensions TO-247AD Dim. Millimeter Min. Max. A 19.81 20.32 B 20.80 21.46 C 15.75 16.26 D 3.55 3.65 E 4.32 5.49 F 5.4 6.2 G 1.65 2.13 H - 4.5 J 1.0 1.4 K 10.8 11.0 L 4.7 5.3 M 0.4 0.8 N 1.5 2.49 Inches Min. Max. 0.780 0.800 0.819 0.845 0.610 0.640 0.140 0.144 0.170 0.216 0.212 0.244 0.065 0.084 - 0.177 0.040 0.055 0.426 0.433 0.185 0.209 0.016 0.031 0.087 0.102 Symbol Characteristics I(AV) Maximum Average Forward Rectified Current @TC=125oC IFSM Peak Forward Surge Current 8.
