SH88F516 - 8051 Microcontroller

SINO WEALTH

📥 Download Datasheet

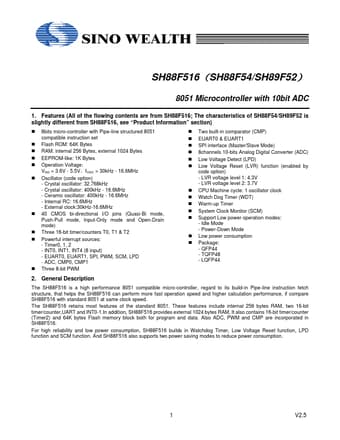

SH88F516 Datasheet Preview — Preview of SH88F516 PDF

Datasheet Details

Part number	SH88F516
Manufacturer	SINO WEALTH
File Size	1.01 MB
Description	8051 Microcontroller
Datasheet	SH88F516-SINOWEALTH.pdf

SH88F516 Product details

Description

The SH88F516 is a high performance 8051 compatible micro-controller, regard to its build-in Pipe-line instruction fetch structure, that helps the SH88F516 can perform more fast operation speed and higher calculation performance, if compare SH88F516 with standard 8051 at same clock speed.

Features

(All of the flowing contents are from SH88F516; The characteristics of SH88F54/SH89F52 is slightly different from SH88F516, see “Product Information” section).
8bits micro-controller with Pipe-line structured 8051 compatible instruction set.
Flash ROM: 64K Bytes.
RAM: internal 256 Bytes, external 1024 Bytes.
EEPROM-like: 1K Bytes.
Operation Voltage: VDD = 3.6V - 5.5V，fOSC = 30kHz - 16.6MHz.
Oscillator (code option) - Crystal oscillator: 32.768kHz - Crystal oscillat.
