SH79F161B - 8051 Microcontroller

Name: SH79F161B
SKU: SH79F161B-1252835

SINO WEALTH

The SH79F161B by SINO WEALTH is a 8051 Microcontroller. Below is the official datasheet preview.

Datasheet Details

Part number	SH79F161B
Manufacturer	SINO WEALTH
File Size	0.98 MB
Description	8051 Microcontroller
Datasheet	SH79F161B-SINOWEALTH.pdf

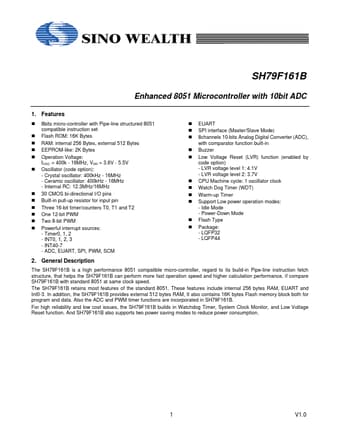

Additional preview pages of the SH79F161B datasheet.

8bits micro-controller with Pipe-line structured 8051 compatible instruction set.
Flash ROM: 16K Bytes.
RAM: internal 256 Bytes, external 512 Bytes.
EEPROM-like: 2K Bytes.
Operation Voltage: fOSC = 400k - 16MHz, VDD = 3.6V - 5.5V.
Oscillator (code option): - Crystal oscillator: 400kHz - 16MHz - Ceramic oscillator: 400kHz - 16MHz - Internal RC: 12.3MHz/16MHz.
30 CMOS bi-directional I/O pins.
Built-in pull-up resistor for input pin.
Three 16-bit timer.
