SH1101A - 132 x 64 Dot Matrix OLED/PLED Segment/Common Driver

Description

SH1101A is a single-chip CMOS OLED/PLED driver with controller for organic/polymer light emitting diode dot-matrix graphic display system.

SH1101A consists of 132 segments, 64 commons that can support a maximum display resolution of 132 X 64.

It is designed for Common Cathode type OLED panel.

Features

  • Support maximum 132 X 64 dot matrix panel Embedded 132 X 64 bits SRAM Operating voltage: (Normal mode) - Logic voltage supply: VDD1 = 2.4V - 3.5V - DC-DC voltage supply: VDD2 = 2.4V - 3.5V - OLED Operating voltage supply: VPP = 7.0V - 16.0V Operating voltage:(Low voltage mode) - Logic voltage supply: VDD1 = 1.65V - 3.5V - DC-DC voltage supply: VDD2 = 2.4V - 3.5V - OLED Operating voltage supply: VPP = 7.0V - 9.0V Maximum segment output current: 320µA Maximum common sink current: 45mA 8-bit 6800-s.

📥 Download Datasheet

Datasheet Details

Part number SH1101A
Manufacturer SINO WEALTH
File Size 842.79 KB
Description 132 x 64 Dot Matrix OLED/PLED Segment/Common Driver
Datasheet download datasheet SH1101A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SH1003AQ N-Ch Power MOSFET JIEJIE
SH100G21A High Speed Thyristor Toshiba
SH100M0010A5F-0611 Aluminum Electrolytic Capacitors YAGEO
SH100M0010AZF-0611 Aluminum Electrolytic Capacitors YAGEO
SH100M0010BZF-0611 Aluminum Electrolytic Capacitors YAGEO

Other Datasheets by SINO WEALTH

Part Number Description
SH1106 132 x 64 Dot Matrix OLED/PLED Segment/Common Driver
SH1107 Dot Matrix OLED/PLED Segment/Common Driver
SH1122 256 x 64 16 Grayscale Dot Matrix OLED/PLED Driver

Full PDF Text Transcription

Click to expand full text

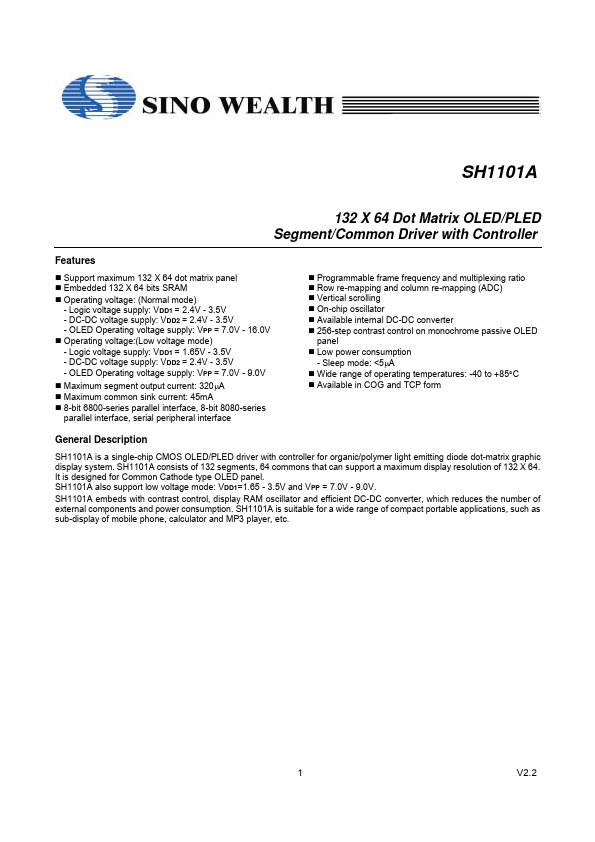

SH1101A 132 X 64 Dot Matrix OLED/PLED Segment/Common Driver with Controller Features Support maximum 132 X 64 dot matrix panel Embedded 132 X 64 bits SRAM Operating voltage: (Normal mode) - Logic voltage supply: VDD1 = 2.4V - 3.5V - DC-DC voltage supply: VDD2 = 2.4V - 3.5V - OLED Operating voltage supply: VPP = 7.0V - 16.0V Operating voltage:(Low voltage mode) - Logic voltage supply: VDD1 = 1.65V - 3.5V - DC-DC voltage supply: VDD2 = 2.4V - 3.5V - OLED Operating voltage supply: VPP = 7.0V - 9.
