DM413 - 3-CHANNEL CONSTANT CURRENT LED DRIVERS

SILICON TOUCH TECHNOLOGY

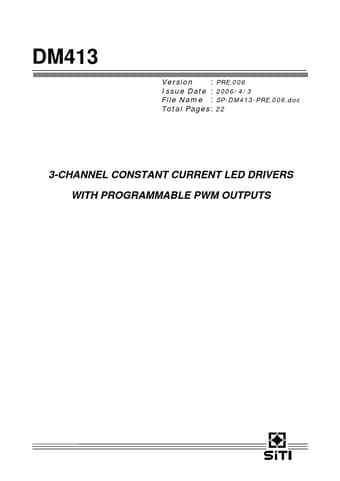

The DM413 by SILICON TOUCH TECHNOLOGY is a 3-CHANNEL CONSTANT CURRENT LED DRIVERS. Below is the official datasheet preview.

Datasheet Details

Part number	DM413
Manufacturer	SILICON TOUCH TECHNOLOGY
File Size	616.52 KB
Description	3-CHANNEL CONSTANT CURRENT LED DRIVERS
Datasheet	DM413-SILICONTOUCHTECHNOLOGY.pdf
Additional preview pages of the DM413 datasheet.

DM413 is a PWM enabled LED driver specifically designed for LED lighting or display applications.

z z z z z z Maximum constant current outputs: 100mA determined by three external resistors Maximum sinking output voltage: 17V Maximum serial-in clock frequency: 20 MHz Built-in buffers for cascading clock and data to next driver PWM free-running capability (refresh rate (~ 400 Hz) with internal oscillator (~ 6.5 MHz)) Selectable modes for PWM control: 8-bits luminance data with PWM current outputs (8 bits mode) 8-bits luminance data and 6-bits global brightness data (14 bits mode) 8-bits.
