S-1741 - 100 mA CMOS VOLTAGE REGULATOR

Download the S-1741 datasheet PDF. This datasheet also covers the S-1740 variant, as both devices belong to the same 100 ma cmos voltage regulator family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • egulator block.
  • Output voltage:.
  • Input voltage:.
  • Output voltage accuracy:.
  • Dropout voltage:.
  • Current consumption during operation:.
  • Output current:.
  • Input capacitor:.
  • Output capacitor:.
  • Built-in overcurrent protection circuit: VOUT = 1.0 V to 3.5 V, selectable in 0.05 V step VIN = 1.5 V to 5.5 V ±1.0% (1.0 V to 1.45 V output product: ±15 mV) (Ta = +25°C) 20 mV typ. (2.5 V output product, at IOUT = 10 mA) (Ta = +25°.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (S-1740-SIISemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number S-1741
Manufacturer SII Semiconductor
File Size 1.62 MB
Description 100 mA CMOS VOLTAGE REGULATOR
Datasheet download datasheet S-1741 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S-1741 CMOS VOLTAGE REGULATOR ABLIC
S-1740 CMOS VOLTAGE REGULATOR ABLIC
S-1701 CMOS VOLTAGE REGULATOR ABLIC
S-1702 VOLTAGE REGULATOR ABLIC
S-1711 CMOS VOLTAGE REGULATOR ABLIC

Other Datasheets by SII Semiconductor

Part Number Description
S-1740 100 mA CMOS VOLTAGE REGULATOR
S-1701 HIGH RIPPLE-REJECTION LOW DROPOUT CMOS VOLTAGE REGULATOR
S-1702 SUPER-LOW CURRENT CONSUMPTION 150 mA VOLTAGE REGULATOR
S-1711 SUPER-SMALL PACKAGE 2-CIRCUIT HIGH RIPPLE-REJECTION LOW DROPOUT CMOS VOLTAGE REGULATOR
S-1721 SUPER-SMALL PACKAGE 2-CIRCUIT HIGH RIPPLE-REJECTION LOW CURRENT CONSUMPTION LOW DROPOUT CMOS VOLTAGE REGULATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

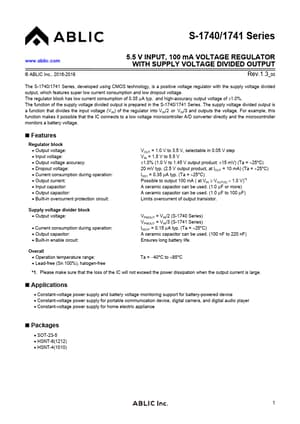

S-1740/1741 Series www.ablic.com www.ablicinc.com © ABLIC Inc., 2016-2018 5.5 V INPUT, 100 mA VOLTAGE REGULATOR WITH SUPPLY VOLTAGE DIVIDED OUTPUT Rev.1.3_00 The S-1740/1741 Series, developed using CMOS technology, is a positive voltage regulator with the supply voltage divided output, which features super low current consumption and low dropout voltage. The regulator block has low current consumption of 0.35 μA typ. and high-accuracy output voltage of ±1.0%. The function of the supply voltage divided output is prepared in the S-1740/1741 Series. The supply voltage divided output is a function that divides the input voltage (VIN) of the regulator into VIN/2 or VIN/3 and outputs the voltage.
