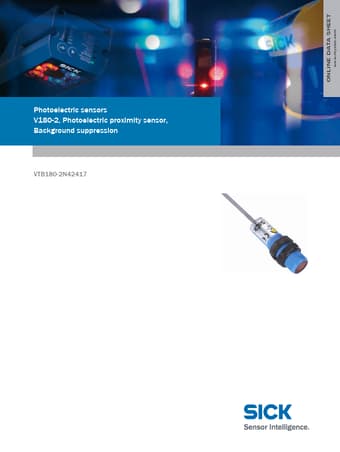

VTB180-2N42417 - Photoelectric sensors

Features

• Sensor/detection principle: Photoelectric proximity sensor, Background suppression Housing design (light emission): Cylindrical, straight Thread diameter (housing): M18 x 1 Optical axis: Sensing range max. : Sensing range: Axial 10 mm 350 mm 1) 30 mm 200 mm 2) Type of light: Light source: Visible red light LED 3) Wave length: 632 nm Angle of dispersion: Ca. 2.8 ° Adjustment: Potentiometer, 4 turns Light spot size (distance): Ø 15 mm (300 mm) 1) 2) 3) Object with 90 % reflec.
