S90N040S - N-Channel MOSFET

Download the S90N040S datasheet PDF. This datasheet also covers the S90N040R-SI variant, as both devices belong to the same n-channel mosfet family and are provided as variant models within a single manufacturer datasheet.

Description

This Power MOSFET is produced using Si-Tech’s advanced Split-Gate MOS Technology.

Features

  • 90V,170A,Rds(on)(typ)=4mΩ @Vgs=10V.
  • High Ruggedness.
  • Fast Switching.
  • 100% Avalanche Tested.
  • Improved dv/dt Capability.
  • Split-Gate MOS Technology General.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (S90N040R-SI-TECH.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number S90N040S
Manufacturer SI-TECH
File Size 418.65 KB
Description N-Channel MOSFET
Datasheet download datasheet S90N040S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S9004P2CT 30A SCHOTTKY BARRIER RECTIFIER Diodes Incorporated
S9005P2CT 20A SCHOTTKY BARRIER RECTIFIER Diodes Incorporated
S9011 NPN Transistor WEJ
S9011 NPN Silicon Epitaxial Planar Transistor BL
S9011 NPN Transistor GME

Other Datasheets by SI-TECH

Part Number Description
S90N040R N-Channel MOSFET
S90N045R N-Channel MOSFET
S90N045S N-Channel MOSFET
S90N030R N-Channel MOSFET
S90N030S N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

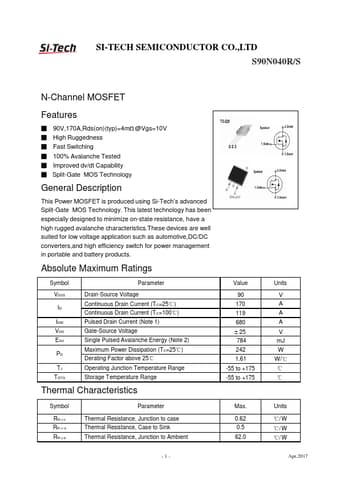

SI-TECH SEMICONDUCTOR CO.,LTD S90N040R/S N-Channel MOSFET Features █ 90V,170A,Rds(on)(typ)=4mΩ @Vgs=10V █ High Ruggedness █ Fast Switching █ 100% Avalanche Tested █ Improved dv/dt Capability █ Split-Gate MOS Technology General Description This Power MOSFET is produced using Si-Tech’s advanced Split-Gate MOS Technology. This latest technology has been especially designed to minimize on-state resistance, have a high rugged avalanche characteristics.These devices are well suited for low voltage application such as automotive,DC/DC converters,and high efficiency switch for power management in portable and battery products.
