S80N08RN - N-Channel MOSFET

Download the S80N08RN datasheet PDF. This datasheet also covers the S80N08R-SI variant, as both devices belong to the same n-channel mosfet family and are provided as variant models within a single manufacturer datasheet.

Description

This Power MOSFET is produced using Si-Tech’s advanced Trench MOS Technology.

Features

  • 80V,80A,Rds(on)(typ)=6.4mΩ @Vgs=10V.
  • High Ruggedness.
  • Fast Switching.
  • 100% Avalanche Tested.
  • Improved dv/dt Capability General.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (S80N08R-SI-TECH.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number S80N08RN
Manufacturer SI-TECH
File Size 730.78 KB
Description N-Channel MOSFET
Datasheet download datasheet S80N08RN Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S80 SMD Single Phase Bridge Rectifier Diotec
S80 Surface Mount Si-Bridge Rectifiers Diotec Semiconductor
S80016 Series 8000 Fuseblocks Cooper Electronic Technologies
S80016LK7 SYNCHRONOUS DRAM SPECtek
S8006DS2 Thyristors Littelfuse

Other Datasheets by SI-TECH

Part Number Description
S80N08R N-Channel MOSFET
S80N08RP N-Channel MOSFET
S80N08S N-Channel MOSFET
S80N10R N-Channel MOSFET
S80N10RN N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

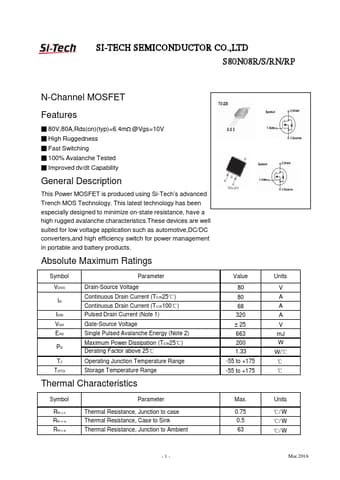

SI-TECH SEMICONDUCTOR CO.,LTD S80N08R/S/RN/RP N-Channel MOSFET Features █ 80V,80A,Rds(on)(typ)=6.4mΩ @Vgs=10V █ High Ruggedness █ Fast Switching █ 100% Avalanche Tested █ Improved dv/dt Capability General Description This Power MOSFET is produced using Si-Tech’s advanced Trench MOS Technology. This latest technology has been especially designed to minimize on-state resistance, have a high rugged avalanche characteristics.These devices are well suited for low voltage application such as automotive,DC/DC converters,and high efficiency switch for power management in portable and battery products.
