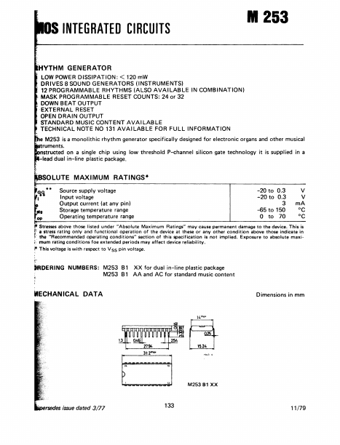

INTEGRATED CIRCUITS
M253
< LOW POWER DISSIPATION: 120 mW
DRIVES 8 SOUND GENERATORS (INSTRUMENTS) 12 PROGRAMMABLE RHYTHMS (ALSO AVAILABLE IN COMBINATION) MASK PROGRAMMABLE RESET COUNTS: 24 or 32 DOWN BEAT OUTPUT EXTERNAL RESET OPEN DRAIN OUTPUT STANDARD MUSIC CONTENT AVAILABLE TECHNICAL NOTE NO 131 AVAILABLE FOR FULL INFORMATION
M253 is a monolithic rhythm generator specifically designed for electronic organs and other musical
on a single chip using low threshold P-channel silicon gate technology it is supplied in a dual in-line plastic package.
LUTE MAXIMUM RATINGS*
Source supply voltage Input voltage Output current (at any pin) Storage temperature range Operating temperature range
-20 to 0.3
V
-20 to 0.
