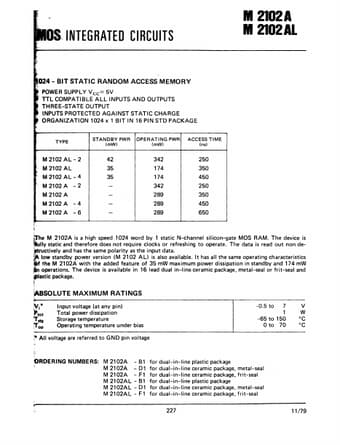

INTEGRATED CIRCUITS
M 2102A M 2102AL
- BIT STATIC RANDOM ACCESS MEMORY
POWER SUPPLY V cc= 5V TTL COMPATIBLE ALL INPUTS AND OUTPUTS THREE-STATE OUTPUT INPUTS PROTECTED AGAINST STATIC CHARGE ORGANIZATION 1024 x 1 BIT IN 16 PIN STD PACKAGE
TYPE
STANDBY PWR OPERATING PW
(mW)
(mW)
ACCESS TIME (n5)
M2102AL-2
42
M2102AL
35
M2102AL-4
35
M 2102 A -2
M 2102 A
M 2102 A -4
M 2102 A -6
342
250
174
350
174
450
342
250
289
350
289
450
289
650
~he M 2102A is a high speed 1024 word by 1 static N-channel silicon-gate MOS RAM. The device is !fully static and therefore does not require clocks or refreshing to operate. The data is read out non deJtructively and has the same polarity as the input data. ~ low standby power version (M 2102 AL) is also available.
