SGM8773 - Dual Differential Comparator

SG Micro

The SGM8773 by SG Micro is a Dual Differential Comparator. Below is the official datasheet preview.

📥 Download Datasheet

SGM8773 Dual Differential Comparator by SG Micro - Datasheet Preview — Official preview page of the SGM8773 Dual Differential Comparator datasheet (SG Micro).

Datasheet Details

Part number	SGM8773
Manufacturer	SG Micro
File Size	868.48 KB
Description	Dual Differential Comparator
Datasheet	SGM8773-SGMicro.pdf

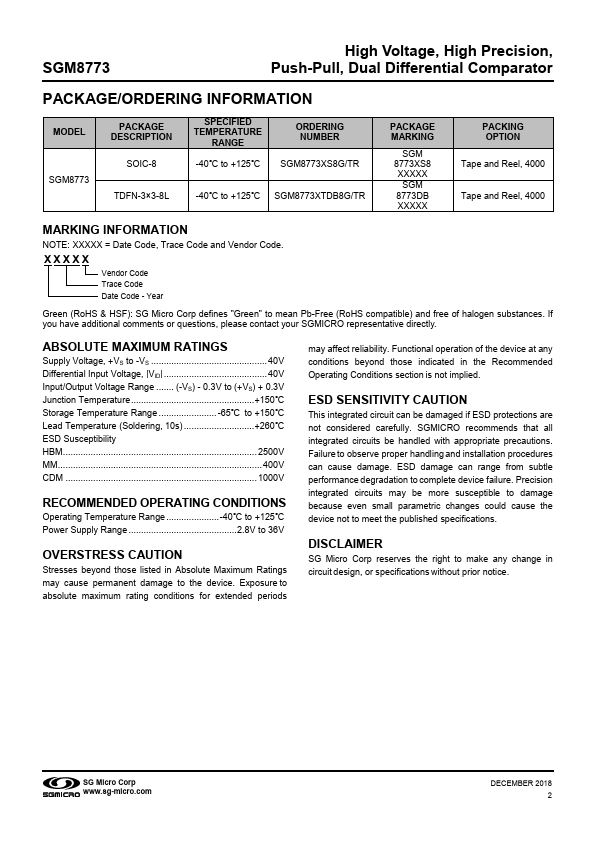

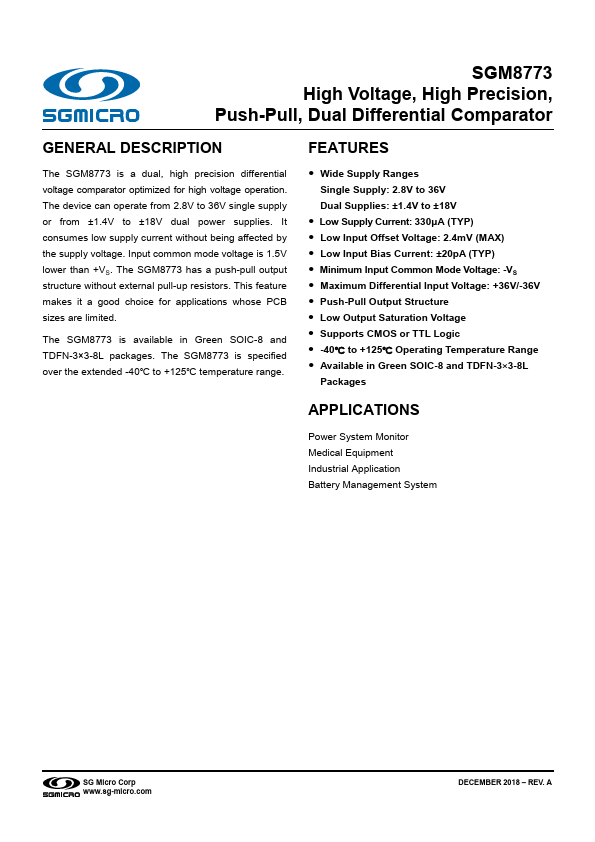

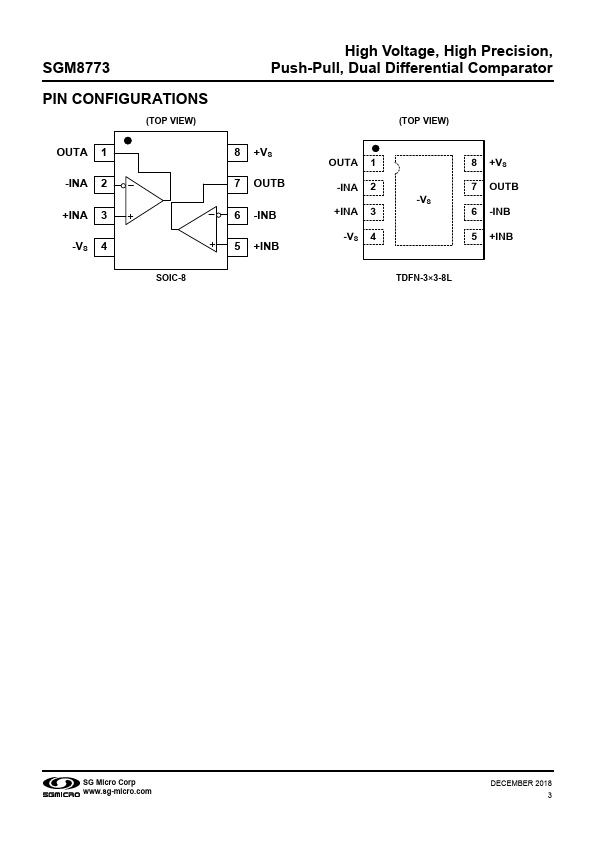

Additional preview pages of the SGM8773 datasheet.

SGM8773 Product details

Description

The SGM8773 is a dual, high precision differential voltage comparator optimized for high voltage operation.

Features

Wide Supply Ranges Single Supply: 2.8V to 36V Dual Supplies: ±1.4V to ±18V.
Low Supply Current: 330μA (TYP).
Low Input Offset Voltage: 2.4mV (MAX).
Low Input Bias Current: ±20pA (TYP).
Minimum Input Common Mode Voltage: -VS.
Maximum Differential Input Voltage: +36V/-36V.
Push-Pull Output Structure.
Low Output Saturation Voltage.
Supports CMOS or TTL Logic.
-40℃ to +125℃ Operating Temperature Range.
Available in Green SOIC-8 and TDFN-3×3-8L.
