SGM6132 - 1.4MHz Buck Converter

Description

The SGM6132 is a current-mode buck converter with an internal power MOSFET switch.

This device has an adjustable output voltage range of 0.8V to 22V and a fixed switching frequency of 1.4MHz.

Features

  • include cycle-by-cycle current limit and thermal shutdown. The device also includes an internal soft-start and an external adjustable soft-start function to limit the inrush current and prevent the overshoot of output voltage. The SGM6132 is available in a Green SOIC-8 (Exposed Pad) package and also minimizes the external components of the device to complete a 3A buck DC/DC converter solution.

📥 Download Datasheet

Datasheet Details

Part number SGM6132
Manufacturer SG Micro
File Size 622.73 KB
Description 1.4MHz Buck Converter
Datasheet download datasheet SGM6132 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SGM-2-17 DOUBLE-BALANCED MIXER DOUBLE-BALANCED MIXER Synergy
SGM031R7T 150A N-CHANNEL POWER MOSFET HI-SEMICON
SGM0410 N-Channel Enhancement Mode Power MOSFET SeCoS
SGM0410-C N-Channel Enhancement Mode Power MOSFET SeCoS
SGM0410S N-Channel Enhancement Mode Power MOSFET SeCoS

Other Datasheets by SG Micro

Part Number Description
SGM6130 385kHz Step-Down Converter
SGM61307 600mA Synchronous Buck Converter
SGM61012 1.2A High-Efficiency Buck Converters
SGM61012S 1.2A/2A High-Efficiency Buck Converters
SGM61013 1A Micro-Point-of-Load Buck Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

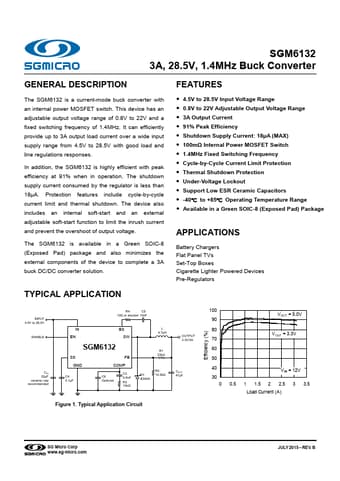

SGM6132 3A, 28.5V, 1.4MHz Buck Converter GENERAL DESCRIPTION The SGM6132 is a current-mode buck converter with an internal power MOSFET switch. This device has an adjustable output voltage range of 0.8V to 22V and a fixed switching frequency of 1.4MHz. It can efficiently provide up to 3A output load current over a wide input supply range from 4.5V to 28.5V with good load and line regulations responses. In addition, the SGM6132 is highly efficient with peak efficiency at 91% when in operation. The shutdown supply current consumed by the regulator is less than 18µA. Protection features include cycle-by-cycle current limit and thermal shutdown.
