SGM48002, SGM48000 - Dual Power MOSFET Drivers

SG Micro

The SGM48002 by SG Micro is a Dual Power MOSFET Drivers. Below is the official datasheet preview.

📥 Download Datasheet

SGM48002 Dual Power MOSFET Drivers by SG Micro - Datasheet Preview — Official preview page of the SGM48002 Dual Power MOSFET Drivers datasheet (SG Micro).

Datasheet Details

Part number	SGM48002, SGM48000
Manufacturer	SG Micro
File Size	592.25 KB
Description	Dual Power MOSFET Drivers
Datasheet	SGM48000-SGMicro.pdf
Note	This datasheet PDF includes multiple part numbers: SGM48002, SGM48000. Please refer to the document for exact specifications by model.

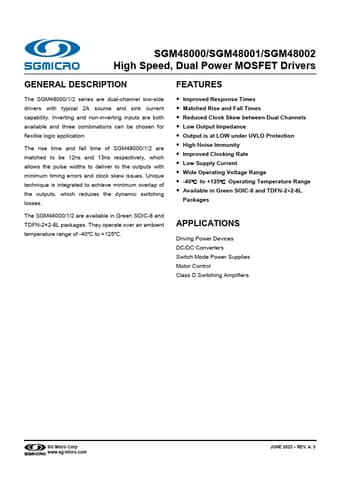

Additional preview pages of the SGM48002 datasheet.

SGM48002 Product details

Description

The SGM48000/1/2 series are dual-channel low-side drivers with typical 2A source and sink current capability.

Features

Improved Response Times.
Matched Rise and Fall Times.
Reduced Clock Skew between Dual Channels.
Low Output Impedance.
Output is at LOW under UVLO Protection.
High Noise Immunity.
Improved Clocking Rate.
Low Supply Current.
Wide Operating Voltage Range.
-40℃ to +125℃ Operating Temperature Range.
Available in Green SOIC-8 and TDFN-2×2-8L Packages.
