SGM4552 - 1-Bit Bidirectional Voltage-Level Translator

Name: SGM4552
SKU: SGM4552-1549141

SG Micro

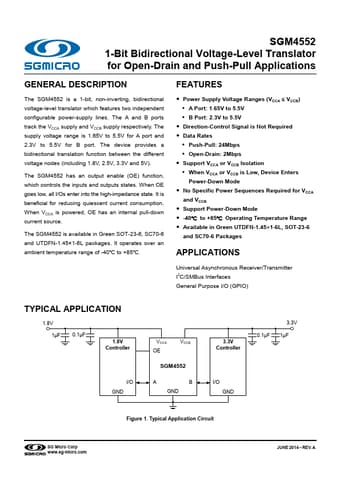

The SGM4552 by SG Micro is a 1-Bit Bidirectional Voltage-Level Translator. Below is the official datasheet preview.

Datasheet Details

Part number	SGM4552
Manufacturer	SG Micro
File Size	547.18 KB
Description	1-Bit Bidirectional Voltage-Level Translator
Datasheet	SGM4552-SGMicro.pdf
Additional preview pages of the SGM4552 datasheet.

The SGM4552 is a 1-bit, non-inverting, bidirectional voltage-level translator which

two independent configurable power-supply lines. The A and B ports track the VCCA supply and VCCB supply respectively. The supply voltage range is 1.65V to 5.5V for A port and 2.3V to 5.5V for B port. The device provides a bidirectional translation function between the different voltage nodes (including 1.8V, 2.5V, 3.3V and 5V). The SGM4552 has an output enable (OE) function, which controls the inputs and outputs states. When OE goes low, all I/Os enter into the high-impedance state. It is benef.
