SGM452 - Low Power Digital Temperature Sensor

SG Micro

📥 Download Datasheet

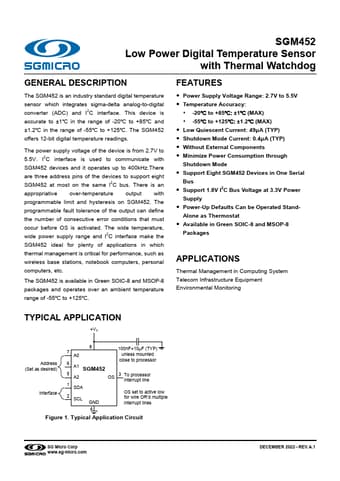

SGM452 Datasheet Preview — Preview of SGM452 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SGM452
Manufacturer	SG Micro
File Size	804.20 KB
Description	Low Power Digital Temperature Sensor
Datasheet	SGM452-SGMicro.pdf

SGM452 Product details

Description

The SGM452 is an industry standard digital temperature sensor which integrates sigma-delta analog-to-digital converter (ADC) and I2C interface.

Features

Power Supply Voltage Range: 2.7V to 5.5V.
Temperature Accuracy:  -20℃ to +85℃: ±1℃ (MAX)  -55℃ to +125℃: ±1.2℃ (MAX).
Low Quiescent Current: 49μA (TYP).
Shutdown Mode Current: 0.4μA (TYP).
Without External Components.
Minimize Power Consumption through Shutdown Mode.
Support Eight SGM452 Devices in One Serial Bus.
Support 1.8V I2C Bus Voltage at 3.3V Power Supply.
Power-Up Defaults Can be Operated StandAlone as Thermostat.
Available in Green S.
