SR120 - 1.0A Schottky Barrier Rectifier

The SR120 by SEP ELECTRONIC is a 1.0A Schottky Barrier Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	SR120
Manufacturer	SEP ELECTRONIC
File Size	28.48 KB
Description	1.0A Schottky Barrier Rectifier
Datasheet	SR120-SEPELECTRONIC.pdf

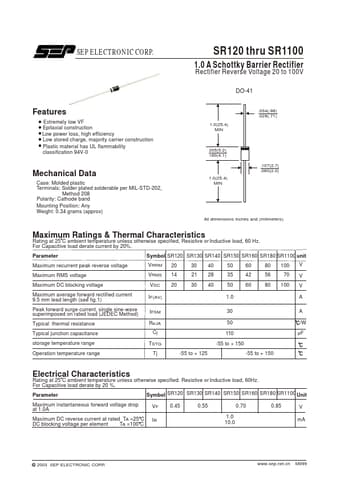

Additional preview pages of the SR120 datasheet.

Extremely low VF Epitaxial construction Low power loss, high efficiency Low stored charge, majority carrier construction Plastic material has UL flammability classification 94V-0 Mechanical Data Case: Molded plastic Terminals: Solder plated solderable per MIL-STD-202, Method 208 Polarity: Cathode band Mounting Position: Any Weight: 0.34 grams (approx) 1.0(25.4) MIN 205(5.2) 160(4.1) 1.0(25.4) MIN .034(.86) .028(.71) .107(2.7) .080(2.0) All dimensions inches and (milimeters) Maximum Ratings &.
