S3B - 3.0 A Surface Mount Silicon Rectifier

Features

  • Ideal for surface mount.

📥 Download Datasheet

Datasheet Details

Part number S3B
Manufacturer SEP ELECTRONIC
File Size 25.92 KB
Description 3.0 A Surface Mount Silicon Rectifier
Datasheet download datasheet S3B Datasheet

📁 Similar Datasheet

  • S3B - 3.0AMPS. Surface Mount Rectifiers (LGE)
  • S3B - Surface Mount Rectifier (Taiwan Semiconductor)
  • S3B - 3.0A Surface Mount Rectifier (TAITRON)
  • S3B - General-Purpose Rectifiers (ON Semiconductor)
  • S3B - General-Purpose Rectifiers (Fairchild Semiconductor)
  • S3B - SURFACE MOUNT RECTIFIER (General Semiconductor)
  • S3B - 3 Amp Silicon Rectifier 50 to 1000 Volts (Micro Commercial Components)
  • S3B - SURFACE MOUNT RECTIFIER(VOLTAGE- 50-100 Volts CURRENT- 3.0 Ampere) (Pan Jit International Inc.)
  • S3B - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SILICON RECTIFIER (Dc Components)
  • S3B - 3.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE (WON-TOP)
Other Datasheets by SEP ELECTRONIC

    Full PDF Text Transcription

    Click to expand full text

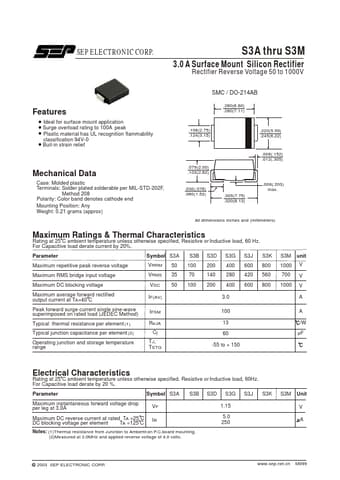

    SEP ELECTRONIC CORP. S3A thru S3M 3.0 A Surface Mount Silicon Rectifier Rectifier Reverse Voltage 50 to 1000V SMC / DO-214AB Features Ideal for surface mount application Surge overload rating to 100A peak Plastic material has UL recognition flammability classification 94V-0 Buit-in strain relief Mechanical Data Case: Molded plastic Terminals: Solder plated solderable per MIL-STD-202F, Method 208 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.21 grams (approx) .260(6.60) .280(7.11) .108(2.75) .124(3.15) .220(5.59) .245(6.22) .079(2.00) .103(2.62) .030(.076) .060(1.52) .305(7.75) .320(8.13) .006(.152) .012(.305) .008(.203) max.
