FR304, FR301 3.0A Fast Recovery Silicon Rectifier

FR304 Description

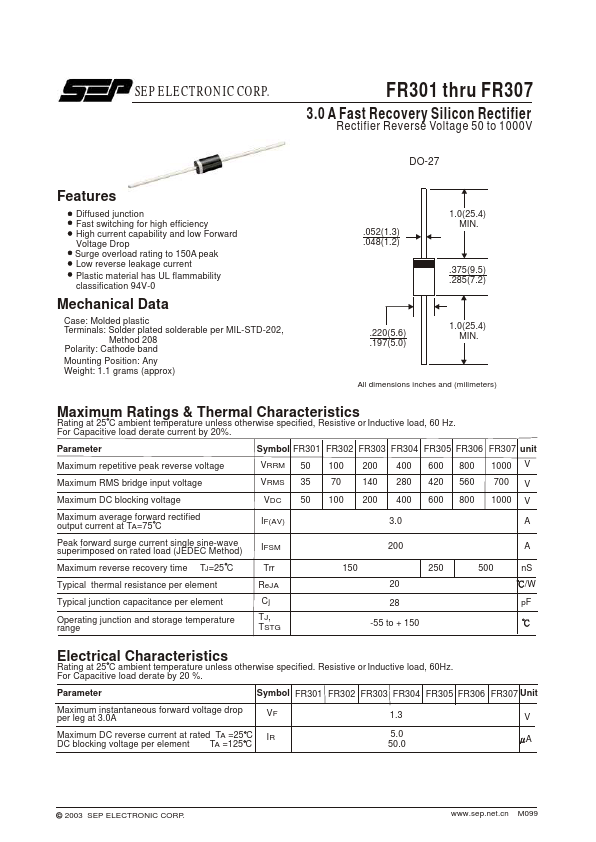

SEP ELECTRONIC CORP.FR301 thru FR307 3.0 A Fast Recovery Silicon Rectifier Rectifier Reverse Voltage 50 to 1000V DO-27 .

FR304 Features

* Diffused junction Fast switching for high efficiency High current capability and low Forward Voltage Drop Surge overload rating to 150A peak Low reverse leakage current Plastic material has UL flammability classification 94V-0 Mechanical Data Case: Molded plastic Terminals: Solder plated solderable

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR304, FR301. Please refer to the document for exact specifications by model.

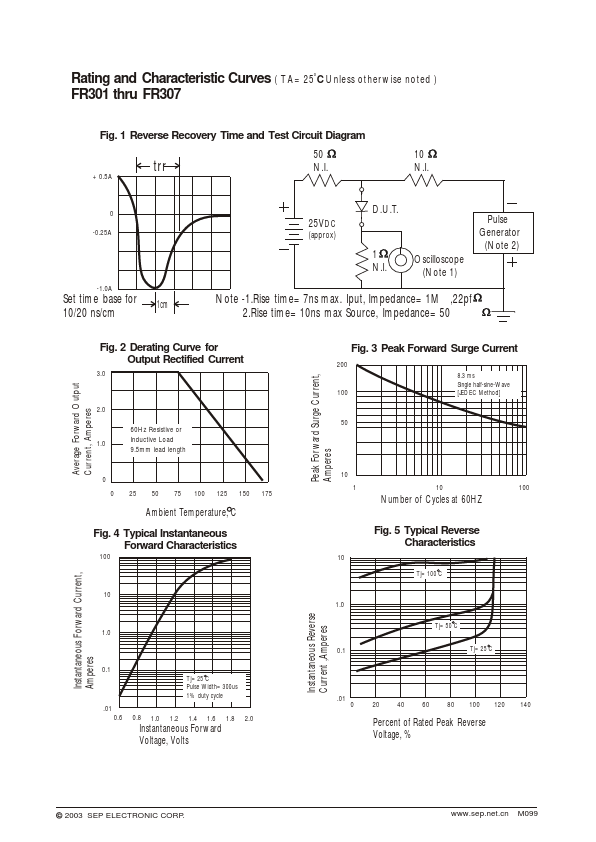

datasheet Preview Page 2

Datasheet Details

Part number
FR304, FR301
Manufacturer
SEP ELECTRONIC
File Size
30.77 KB
Datasheet
FR301-SEPELECTRONIC.pdf
Description
3.0A Fast Recovery Silicon Rectifier
Note
This datasheet PDF includes multiple part numbers: FR304, FR301.
Please refer to the document for exact specifications by model.
