FR203, FR201 2.0A Fast Recovery Silicon Rectifier

FR203 Description

SEP ELECTRONIC CORP.FR201 thru FR207 2.0 A Fast Recovery Silicon Rectifier Rectifier Reverse Voltage 50 to 1000V DO-15 .

FR203 Features

* Diffused junction Fast switching for high efficiency High current capability and low Forward Voltage Drop Surge overload rating to 30A peak Low reverse leakage current Plastic material has UL flammability classification 94V-0 Mechanical Data Case: Molded plastic Terminals: Solder plated solderable p

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR203, FR201. Please refer to the document for exact specifications by model.

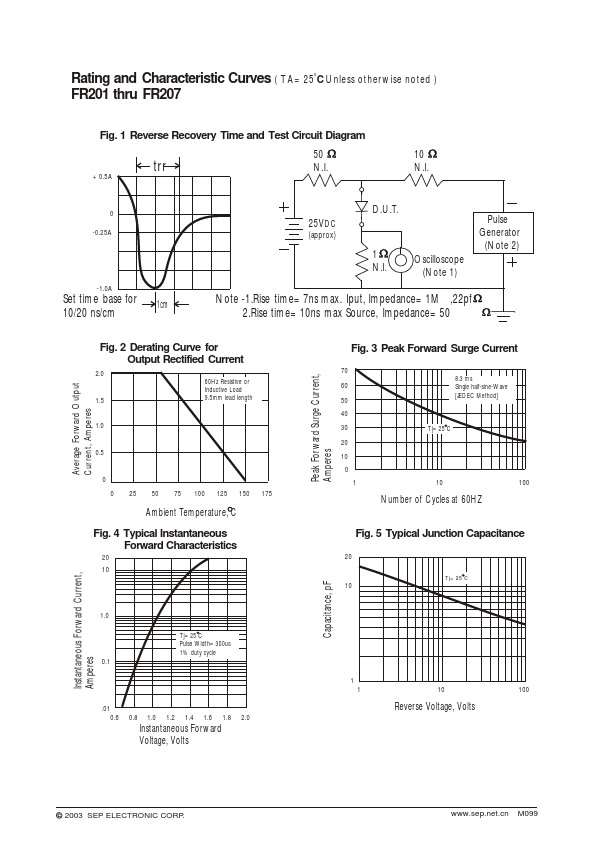

datasheet Preview Page 2

Datasheet Details

Part number
FR203, FR201
Manufacturer
SEP ELECTRONIC
File Size
30.29 KB
Datasheet
FR201-SEPELECTRONIC.pdf
Description
2.0A Fast Recovery Silicon Rectifier
Note
This datasheet PDF includes multiple part numbers: FR203, FR201.
Please refer to the document for exact specifications by model.
