FR201 2.0A Fast Recovery Silicon Rectifier

FR201 Description

SEP ELECTRONIC CORP.FR201 thru FR207 2.0 A Fast Recovery Silicon Rectifier Rectifier Reverse Voltage 50 to 1000V DO-15 .

FR201 Features

* Diffused junction Fast switching for high efficiency High current capability and low Forward Voltage Drop Surge overload rating to 30A peak Low reverse leakage current Plastic material has UL flammability classification 94V-0 Mechanical Data Case: Molded plastic Terminals: Solder plated solderable p

📥 Download Datasheet

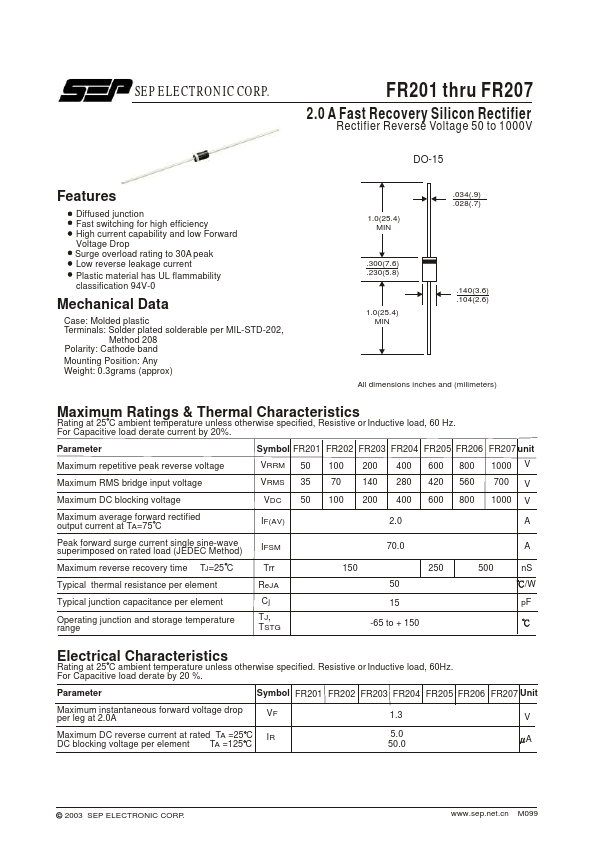

Preview of FR201 PDF

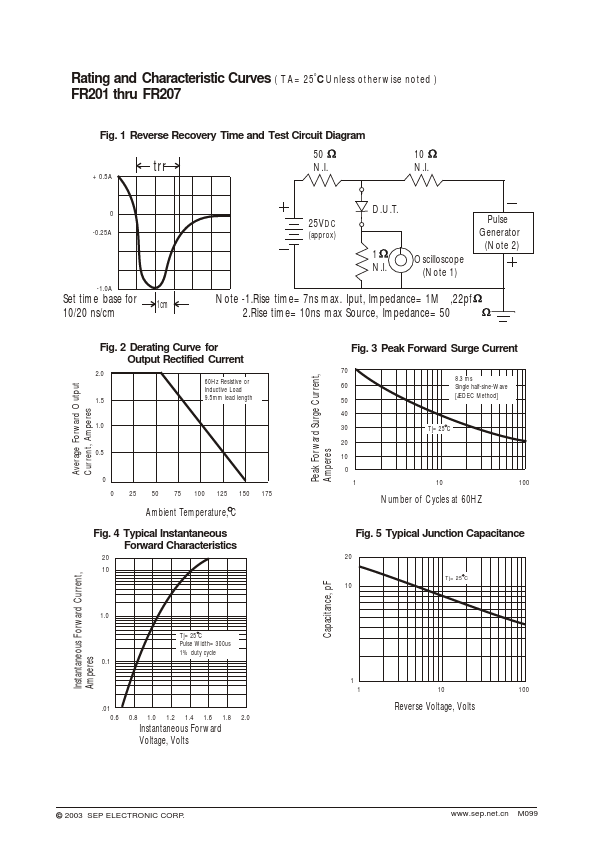

datasheet Preview Page 2

Datasheet Details

Part number
FR201
Manufacturer
SEP ELECTRONIC
File Size
30.29 KB
Datasheet
FR201-SEPELECTRONIC.pdf
Description
2.0A Fast Recovery Silicon Rectifier
