ZM1.5C12 - SILICON PLANAR ZENER DIODES

Download the ZM1.5C12 datasheet PDF (ZM1.5C3V3 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for silicon planar zener diodes.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ZM1.5C3V3-SEMTECH.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ZM1.5C12
Manufacturer SEMTECH
File Size 172.77 KB
Description SILICON PLANAR ZENER DIODES
Datasheet download datasheet ZM1.5C12 Datasheet

📁 Similar Datasheet

  • ZM1020 - INDICATOR TUBE (Philips)
  • ZM1180 - Gas Discharge Displays (Siemens)
  • ZM1180 - Nixie Tube (Siemens)
  • ZM1182 - Nixie Tube (Siemens)
  • ZM1325 - Indicator Tube (Philips)
Other Datasheets by SEMTECH

Full PDF Text Transcription

Click to expand full text

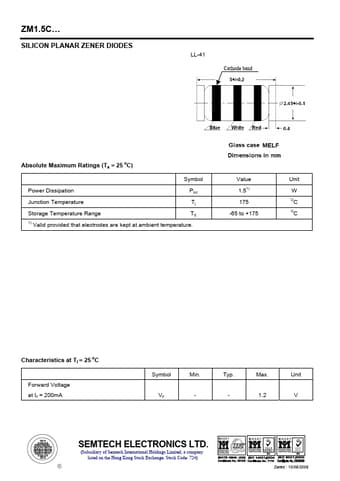

ZM1.5C… SILICON PLANAR ZENER DIODES LL-41 Cathode band Absolute Maximum Ratings (Ta = 25 oC) Symbol Power Dissipation Ptot Junction Temperature Tj Storage Temperature Range TS 1) Valid provided that electrodes are kept at ambient temperature. Value 1.51) 175 -65 to +175 Unit W OC OC Characteristics at Tj = 25 oC Forward Voltage at IF = 200mA Symbol Min. Typ. Max. Unit VF - - 1.2 V SEMTECH ELECTRONICS LTD. (Subsidiary of Semtech International Holdings Limited, a company listed on the Hong Kong Stock Exchange, Stock Code: 724) ® Dated : 10/05/2005 ZM1.5C… Characteristics at Tj = 25 oC Type Nominal Zener Voltage V Zener Voltage Range V IZT (mA) ZM 1.5C 3V3 3.3 3.1…3.5 113.6 ZM 1.5C 3V6 3.6 3.4…3.8 104.2 ZM 1.5C 3V9 3.9 3.7…4.1 96.1 ZM 1.5C 4V3 4.
