W10M - 1.5A SINGLE-PHASE SILI CON BRIDGE RECTIFIERS

SEMTECH

📥 Download Datasheet

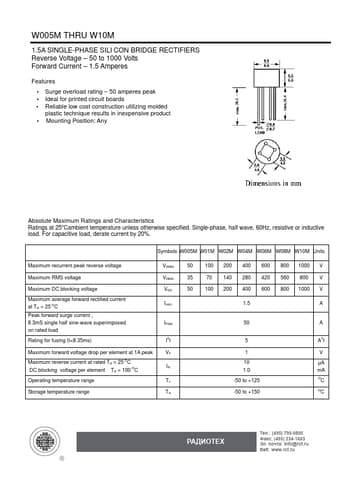

W10M Datasheet Preview — Preview of W10M PDF

datasheet Preview Page 2

Datasheet Details

Part number	W10M
Manufacturer	SEMTECH
File Size	160.51 KB
Description	1.5A SINGLE-PHASE SILI CON BRIDGE RECTIFIERS
Datasheet	W10M-SEMTECH.pdf

W10M Product details

Features

Surge overload rating.
50 amperes peak.
Ideal for printed circuit boards.
Reliable low cost construction utilizing molded plastic technique results in inexpensive product.
Mounting Position: Any Absolute Maximum Ratings and Characteristics Ratings at 25oCambient temperature unless otherwise specified. Single-phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Symbols W005M W01M W02M W04M W06M W08M W10M U.
