SD13003, SD13002 NPN Silicon Epitaxial Planar Transistor

SD13003 Description

SD13002 / SD13003 NPN Silicon Epitaxial Planar Transistor for power switching and electron rectifier applications.These transistors are subdivided in.

SD13003 Applications

* These transistors are subdivided into one group according to its DC current gain. On special request, these transistors can be manufactured in different pin configurations. TO-92L Plastic Package Weight approx. 0.38g Absolute Maximum Ratings (T a = 25oC) Collector Base Voltage Collector Emitter V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SD13003, SD13002. Please refer to the document for exact specifications by model.

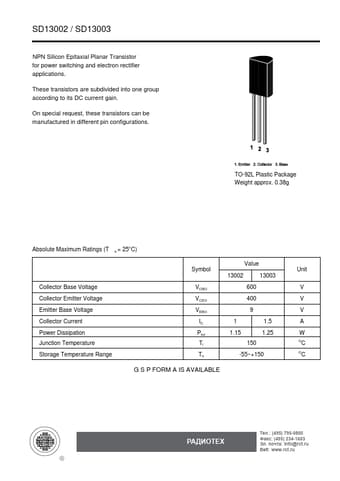

datasheet Preview Page 2

Datasheet Details

Part number
SD13003, SD13002
Manufacturer
SEMTECH
File Size
171.26 KB
Datasheet
SD13002-SEMTECH.pdf
Description
NPN Silicon Epitaxial Planar Transistor
Note
This datasheet PDF includes multiple part numbers: SD13003, SD13002.
Please refer to the document for exact specifications by model.
