KBJ4005 - Glass Passivated Single-Phase Bridge Rectifier

Product Overview

SEMTECH

Part number	KBJ4005
Manufacturer	SEMTECH
File Size	575.81 KB
Description	Glass Passivated Single-Phase Bridge Rectifier
Datasheet	KBJ4005 Datasheet

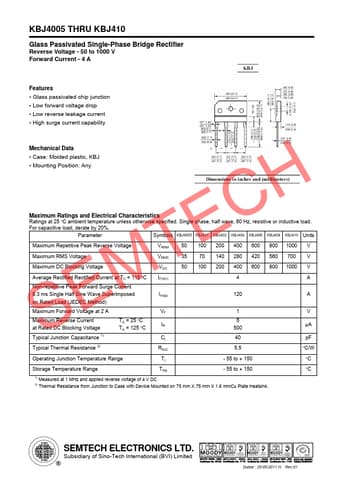

Additional preview pages of the KBJ4005 datasheet.

Glass passivated chip junction.
Low forward voltage drop.
Low reverse leakage current.
High surge current capability Mechanical Data.
Case: Molded plastic, KBJ.
Mounting Position: Any HMaximum Ratings and Electrical Characteristics Ratings at 25 OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. CFor capacitive load, derate by 20%. Parameter Symbols KBJ4005 KBJ401 KBJ402 KBJ40.
