HZS11A3 - SILICON EPITAXIAL PLANER ZENER DIODES

Download the HZS11A3 datasheet PDF. This datasheet also covers the HZS2A1 variant, as both devices belong to the same silicon epitaxial planer zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc.
  • Wide spectrum from 1.6V through 38V of zener voltage provide flexible.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HZS2A1-SEMTECH.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HZS11A3
Manufacturer SEMTECH
File Size 436.19 KB
Description SILICON EPITAXIAL PLANER ZENER DIODES
Datasheet download datasheet HZS11A3 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HZS11A3L Silicon Planar Zener Diode Renesas
HZS11A1L Silicon Planar Zener Diode Renesas
HZS11A2L Silicon Planar Zener Diode Renesas
HZS11 Silicon Epitaxial Planar Zener Diode Renesas
HZS11 Silicon Epitaxial Planar Zener Diode for Stabilized Power Supply Hitachi

Other Datasheets by SEMTECH

Part Number Description
HZS11A1 SILICON EPITAXIAL PLANER ZENER DIODES
HZS11A2 SILICON EPITAXIAL PLANER ZENER DIODES
HZS11B1 SILICON EPITAXIAL PLANER ZENER DIODES
HZS11B2 SILICON EPITAXIAL PLANER ZENER DIODES
HZS11B3 SILICON EPITAXIAL PLANER ZENER DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

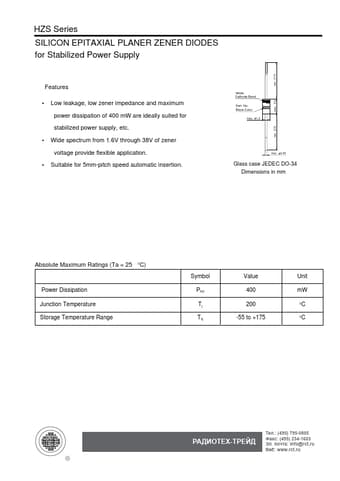

HZS Series SILICON EPITAXIAL PLANER ZENER DIODES for Stabilized Power Supply min. 27.5 Features • Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc. • Wide spectrum from 1.6V through 38V of zener voltage provide flexible application. • Suitable for 5mm-pitch speed automatic insertion. White Cathode Band Part No. Black Color max. 1.9 max. 0.45 Glass case JEDEC DO-34 Dimensions in mm min. 27.5 max. 2.9 Absolute Maximum Ratings (Ta = 25 OC) Power Dissipation Junction Temperature Storage Temperature Range Symbol Ptot Tj TS Value 400 200 -55 to +175 Unit mW OC OC РАДИОТЕХ-ТРЕЙД Тел.: (495) 795-0805 Факс: (495) 234-1603 Эл. почта: info@rct.ru Веб: www.rct.
