ESDBL0541Z - Transient Voltage Suppressors

SEMTECH

📥 Download Datasheet

ESDBL0541Z Datasheet Preview — Preview of ESDBL0541Z PDF

Datasheet Details

Part number	ESDBL0541Z
Manufacturer	SEMTECH
File Size	137.29 KB
Description	Transient Voltage Suppressors
Datasheet	ESDBL0541Z-SEMTECH.pdf

ESDBL0541Z Product details

Description

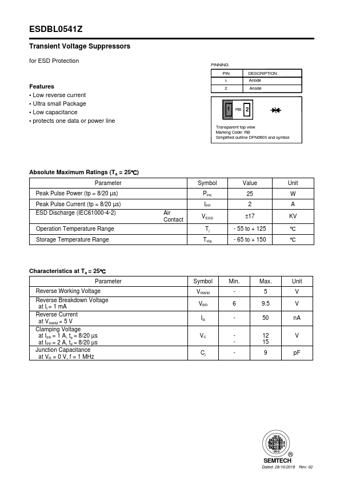

Anode Anode 1 RB 2 Transparent top view Marking Code: RB Simplified outline DFN0603 and symbol Absolute Maximum Ratings (Ta = 25℃) Parameter Peak Pulse Power (tp = 8/20 µs) Peak Pulse Current (tp = 8/20 µs) ESD Discharge (IEC61000-4-2) Operation Temperature Range Storage Temperature Range Air Contact Symbol PPK IPP VESD Tj Tstg Value 25 2 ±17 - 55 to + 125 - 65 to + 150 Unit W A KV ℃ ℃ Characteristics at Ta = 25℃ Parameter Reverse Working Voltage Reverse Breakdown Voltage at It = 1 mA Rev

Features

Low reverse current.
Ultra small Package.
Low capacitance.
protects one data or power line.
