EClamp2410PQ ESD Protection Device

SEMTECH

EClamp2410PQ Description

PROTECTION PRODUCTS - EMIClamp® EClamp2410PQ ESD Protection Device for T-Flash/MicroSD Interfaces .
The EClamp®2410PQ is a combination EMI filter and line termination device with integrated TVS diodes for use on Multimedia Card interfaces.

EClamp2410PQ Features

* u Bidirectional EMI/RFI filtering and line termination with integrated ESD protection u ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact) u TVS working voltage: 5V u Termination Resistors: 45Ω u Pull Up Resistors: 15kΩ (3 each) and 50kΩ u Typical Capacitance per Line: 12pF (

EClamp2410PQ Applications

* u T-Flash / MicroSD Interfaces u MMC Interfaces u CDMA, GSM, 3G Cell Phones u Automotive Applications Pin Configuration Package Configuration DAT1 In 1 DAT0 In CLK In Rup1 Vdd CMD In DAT3 In DAT2 In 16 DAT1 Out DAT0 Out CLK Out Rup3 Rup2 CMD Out DAT3 Out DAT2 Out 4.00 12 1.60 0.50 BSC 0.58 Pin

📥 Download Datasheet

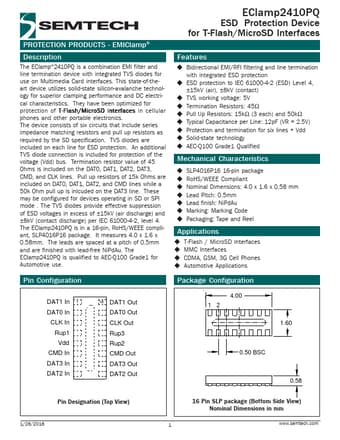

EClamp2410PQ Datasheet Preview — Preview of EClamp2410PQ PDF

Datasheet Details

Part number: EClamp2410PQ
Manufacturer: SEMTECH
File Size: 280.15 KB
Datasheet: EClamp2410PQ-SEMTECH.pdf
Description: ESD Protection Device
