E24SBKA2BA-CH - ESD Protection Diode

Product Overview

SEMTECH

Part number	E24SBKA2BA-CH
Manufacturer	SEMTECH
File Size	198.85 KB
Description	ESD Protection Diode
Datasheet	E24SBKA2BA-CH Datasheet

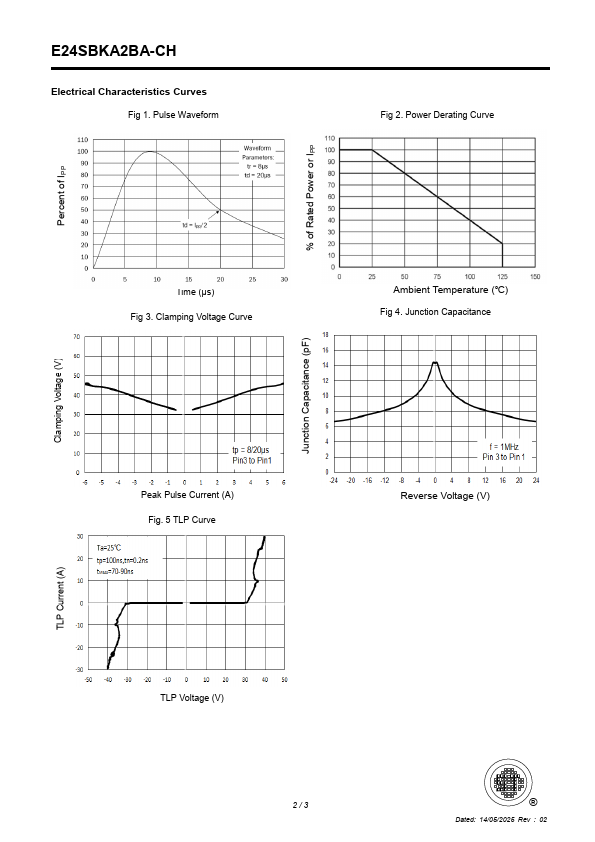

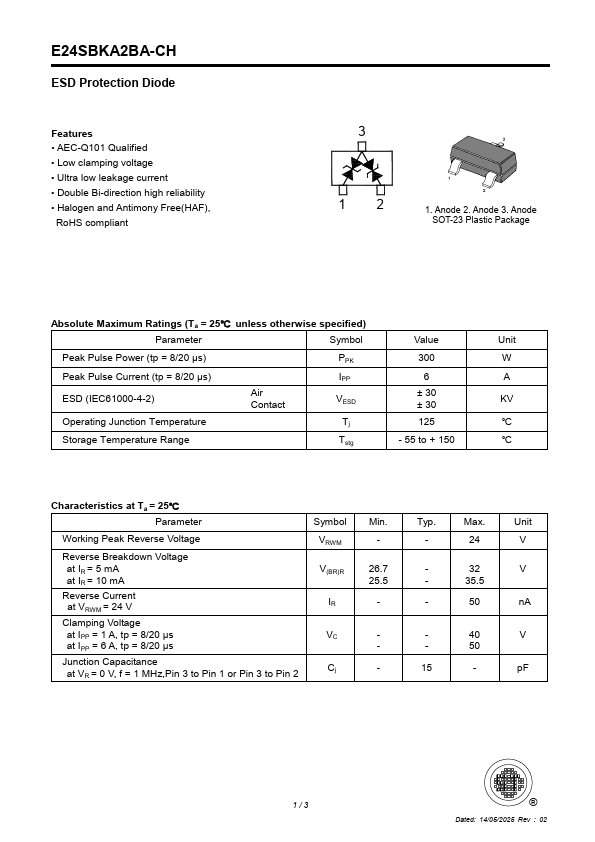

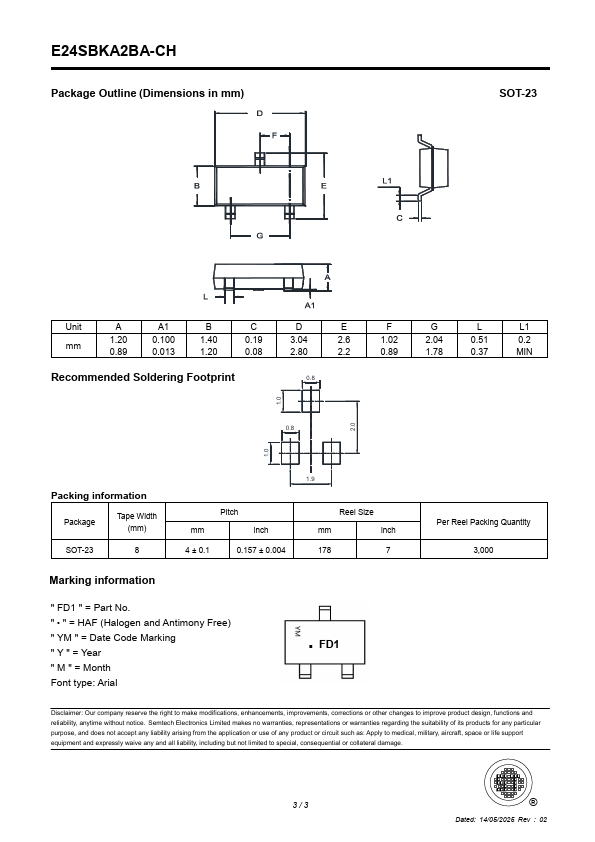

Additional preview pages of the E24SBKA2BA-CH datasheet.

AEC-Q101 Qualified.
Low clamping voltage.
Ultra low leakage current.
Double Bi-direction high reliability.
Halogen and Antimony Free(HAF), RoHS compliant 3 12 1. Anode 2. Anode 3. Anode SOT-23 Plastic Package Absolute Maximum Ratings (Ta = 25℃ unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (tp = 8/20 µs) PPK 300 W Peak Pulse Current (tp = 8/20 µs) IPP 6 A ESD (IEC61000-4-2) Air ± 30 Contact VESD ± 30 K.
