BC307 PNP Silicon Epitaxial Planar Transistor

BC307 Description

BC307…BC308 PNP Silicon Epitaxial Planar Transistor for switching and amplifier applications Absolute Maximum Ratings (Ta = 25 OC) Parameter Collecto.

BC307 Applications

* Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Total Power Dissipation Junction Temperature Storage Temperature Range 1. Collector 2. Base 3. Emitter TO-92 Plastic Package Symbol -VCBO -VCEO -VEBO -IC Ptot Tj

📥 Download Datasheet

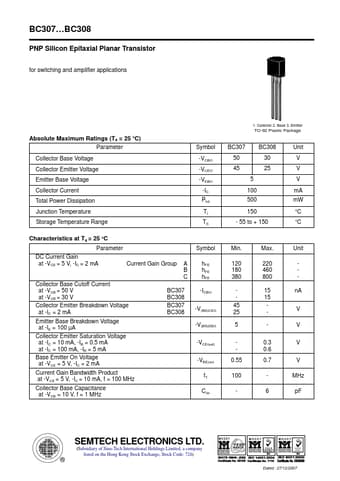

Preview of BC307 PDF
datasheet Preview Page 2

Datasheet Details

Part number
BC307
Manufacturer
SEMTECH
File Size
141.72 KB
Datasheet
BC307-SEMTECH.pdf
Description
PNP Silicon Epitaxial Planar Transistor
