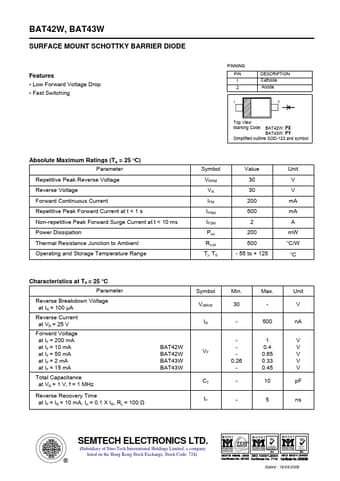

The BAT43W by SEMTECH is a SURFACE MOUNT SCHOTTKY BARRIER DIODE. Below is the official datasheet preview.
| Part number | BAT43W, BAT42W |
|---|---|
| Manufacturer | SEMTECH |
| File Size | 248.24 KB |
| Description | SURFACE MOUNT SCHOTTKY BARRIER DIODE |
| Datasheet |
 BAT42W-SEMTECH.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: BAT43W, BAT42W. Please refer to the document for exact specifications by model. |
|
|
Cathode Anode 2 Top View Marking Code: BAT42W: PX BAT43W: PY Simplified outline SOD-123 and symbol Absolute Maximum Ratings (Ta = 25 OC) Parameter Repetitive Peak Reverse Voltage Reverse Voltage Forward Continuous Current Repetitive Peak Forward Current at t < 1 s Non-repetitive Peak Forward Surge Current at t < 10 ms Power Dissipation Thermal Resistance Junction to Ambient Operating and Storage Temperature Range Symbol VRRM VR IFM IFRM IFSM Ptot RθJA Tj, TS Value 30 30 200 500 2 200 500 - 5
