1SS86

The 1SS86 is SILICON SCHOTTKY BARRIER DIODE designed by SEMTECH.

Product Overview

SEMTECH

📥 Download Datasheet

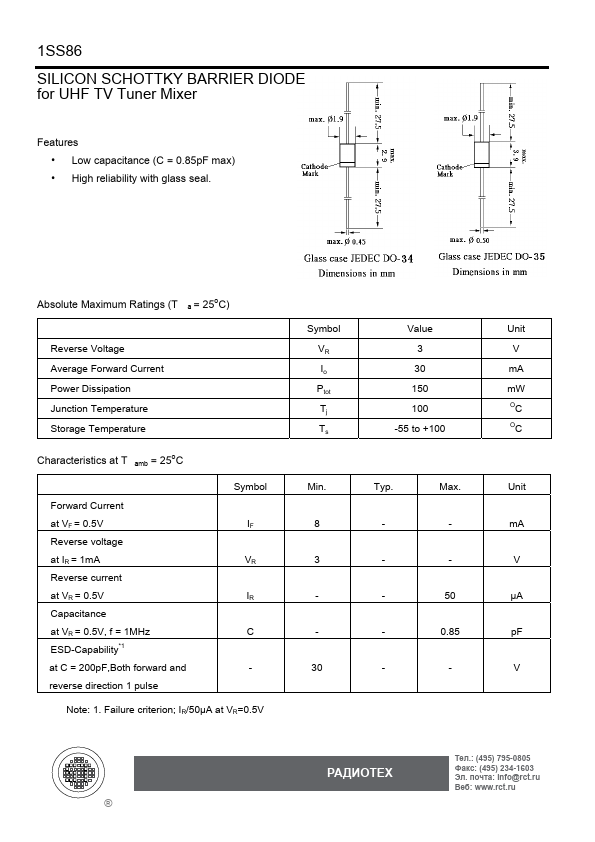

1SS86 SILICON SCHOTTKY BARRIER DIODE by SEMTECH - Datasheet Preview — Datasheet preview – 1SS86

Datasheet Details

Part number	1SS86
Manufacturer	SEMTECH
File Size	51.86 KB
Description	SILICON SCHOTTKY BARRIER DIODE
Datasheet	1SS86-SEMTECH.pdf
Additional preview pages of the 1SS86 datasheet.

Product details

Features

Low capacitance (C = 0.85pF max).
High reliability with glass seal. Absolute Maximum Ratings (T a = 25oC) Reverse Voltage Average Forward Current Power Dissipation Junction Temperature Storage Temperature Symbol Value Unit VR 3 V Io 30 mA Ptot 150 mW Tj 100 OC Ts -55 to +100 OC Characteristics at T amb = 25oC Symbol Min. Typ. Max. Unit Forward Current at VF = 0.5V IF 8 - - mA Reverse voltage at IR = 1mA VR 3 - - V Reverse current at VR.
