1SS270A - SILICON EPITAXIAL PLANAR H IGH SPEED SWITCHING DIODE

1SS270A Description

1SS270A SILICON EPITAXIAL PLANAR H IGH SPEED SWITCHING DIODE .

1SS270A Features

* Low capacitance. (C=3.0pF max. )
* Short reverse recovery time. (trr = 3.5ns max. )
* High reliability. Absolute Maximum Ratings (T a = 25OC) Parameter Symbol Limits Unit Peak Reverse Voltage Reverse Voltage VRM 70 V VR 60 V Peak Forward Current I FM 450 mA A

📥 Download Datasheet

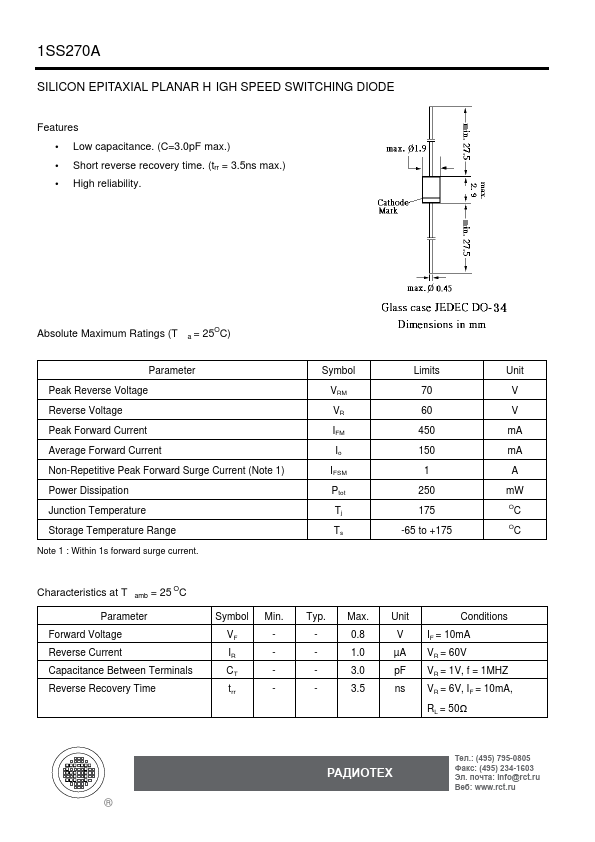

Preview of 1SS270A PDF

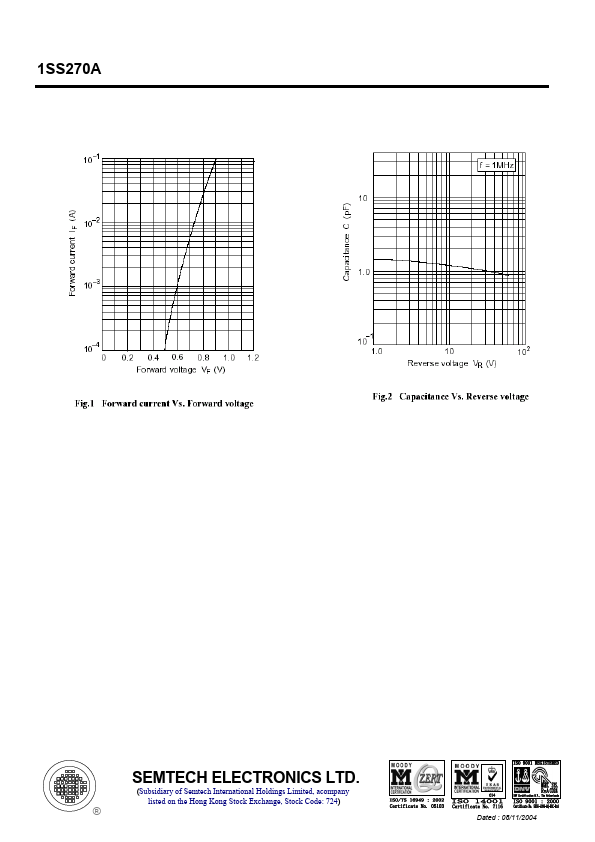

datasheet Preview Page 2

Datasheet Details

Part number
1SS270A
Manufacturer
SEMTECH
File Size
156.20 KB
Datasheet
1SS270A-SEMTECH.pdf
Description
SILICON EPITAXIAL PLANAR H IGH SPEED SWITCHING DIODE
