The 1N914W by SEMTECH is a Small Signal Diode. Below is the official datasheet preview.
| Part number | 1N914W |
|---|---|
| Manufacturer | SEMTECH |
| File Size | 163.07 KB |
| Description | Small Signal Diode |
| Datasheet |
 1N914W-SEMTECH.pdf
|
|
|

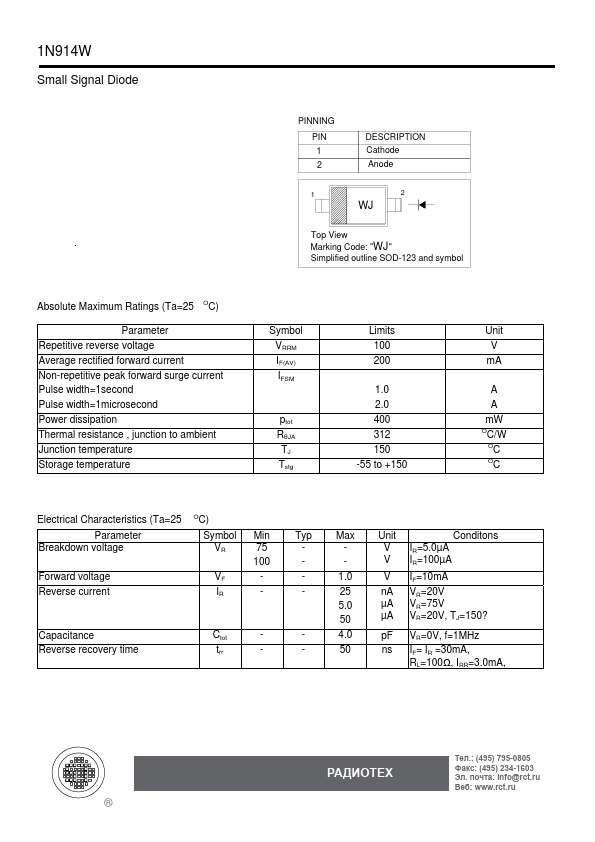

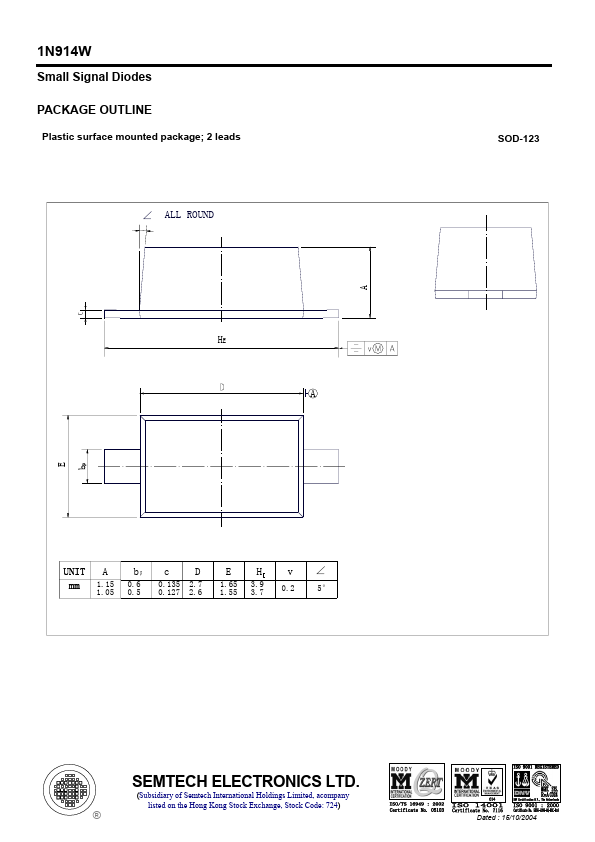

Cathode Anode 1 2 WJ Top View Marking Code: "WJ" Simplified outline SOD-123 and symbol Symbol VRRM IF(AV) IFSM ptot RθJA TJ Tstg Limits 100 200 1.0 2.0 400 312 150 -55 to +150 Unit V mA A A mW OC/W OC OC Electrical Characteristics (Ta=25 OC) Parameter Breakdown voltage Symbol Min Typ Max Unit Conditons VR 75 - - V IR=5.0µA 100 - - V IR=100µA Forward voltage Reverse current VF - IR - - 1.0 V IF=10mA - 25 nA VR=20V 5.0 µA VR=75V 50 µA VR=20V, TJ=150? Capacitance
