1N4005W, 1N4001W - Surface Mount General Purpose Silicon Rectifiers

The 1N4005W by SEMTECH is a Surface Mount General Purpose Silicon Rectifiers. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 1N4005W Surface Mount General Purpose Silicon Rectifiers datasheet (SEMTECH).

Datasheet Details

Part number 1N4005W, 1N4001W
Manufacturer SEMTECH
File Size 199.93 KB
Description Surface Mount General Purpose Silicon Rectifiers
Datasheet download datasheet 1N4001W-SEMTECH.pdf
Note This datasheet PDF includes multiple part numbers: 1N4005W, 1N4001W.
Please refer to the document for exact specifications by model.
Additional preview pages of the 1N4005W datasheet.

1N4005W Product details

Description

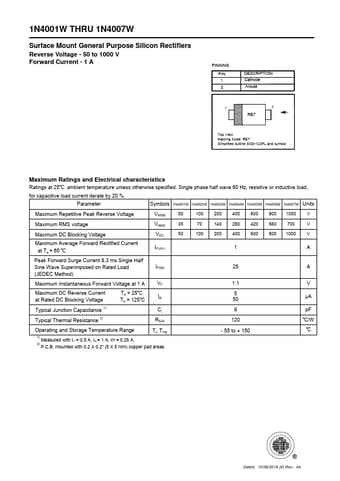

Cathode Anode 1 2 RE7 Top View Marking Code: RE7 Simplified outline SOD-123FL and symbol Maximum Ratings and Electrical characteristics Ratings at 25℃ ambient temperature unless otherwise specified.Single phase half wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.Parameter Symbols 1N4001W 1N4002W 1N4003W 1N4004W 1N4005W 1N4006W 1N4007W Units Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35
