ST2SD1616_SEMTECHELECTRONICS.pdf
Datasheet Details
Part number:
ST2SD1616A, ST2SD1616
Manufacturer:
SEMTECH ELECTRONICS
File Size:
187.40 KB
Description:
Npn silicon transistor.
Note:
This datasheet PDF includes multiple part numbers: ST2SD1616A, ST2SD1616.
Please refer to the document for exact specifications by model.

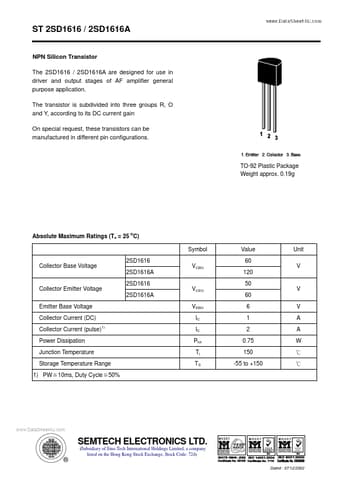

ST 2SD1616 / 2SD1616A NPN Silicon Transistor The 2SD1616 / 2SD1616A are designed for use in driver and output stages of AF amplifier general purpose application.
The transistor is subdivided into three groups R, O and Y, according to its DC current gain On special request, these transistors can be manufactured in different pin configurations.
TO-92 Plastic Package Weight approx.
0.19g Absolute Maximum Ratings (Ta = 25 OC) Symbol Collector Base Voltage 2SD1616 2SD1616A Collector Emitter Voltage
