SESMC08 - Standard Capacitance Tvs Diode Array

Download the SESMC08 datasheet PDF (SESMC33 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for standard capacitance tvs diode array.

Description

The SESMCxx is a standard capacitance transient voltage suppressor array,designed to protect applications such as portable electronics and SMART phones.

It is rated at 350 Watts for an 8/20µs waveshape.

The SESMCxx meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements .

Features

  • >350 Watts Peak Pulse Power per Line (tp=8/20µs) >Ultra low leakage: uA level >Operating voltage: 3.3V,5V,8V,12V,15V,18V,24V,36V >Low clamping voltage >Weight: 8.0mg SOT-23.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SESMC33-SEMIWILL.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SESMC08
Manufacturer SEMIWILL
File Size 621.97 KB
Description Standard Capacitance Tvs Diode Array
Datasheet download datasheet SESMC08 Datasheet

📁 Similar Datasheet

  • SESM8LC03 - Low Capacitance TVS/ESD Diode Array (Star-wing)
  • SESM8LC05 - Low Capacitance TVS/ESD Diode Array (Star-wing)
  • SESM8LC12 - Low Capacitance TVS/ESD Diode Array (Star-wing)
  • SESM8LC24 - Low Capacitance TVS/ESD Diode Array (Star-wing)
  • SESM8LC36 - Low Capacitance TVS/ESD Diode Array (Star-wing)
  • SESM8LC36 - Low Capacitance TVS/ESD Diode Array (Star-wing)
  • SES08C15L04 - Electrostatic Discharged Protection (Brightking)
  • SES5001 - Rectifiers (Unitrode)
  • SES5002 - Rectifiers (Unitrode)
  • SES5003 - Rectifiers (Unitrode)
Other Datasheets by SEMIWILL
  • SESMC05 - Standard Capacitance Tvs Diode Array
  • SESMC12 - Standard Capacitance Tvs Diode Array
  • SESMC15 - Standard Capacitance Tvs Diode Array
  • SESMC18 - Standard Capacitance Tvs Diode Array
  • SESMC24 - Standard Capacitance Tvs Diode Array
  • SESMC33 - Standard Capacitance Tvs Diode Array
  • SESMC36 - Standard Capacitance Tvs Diode Array
  • SESM03 - 350W TVS ARRAY

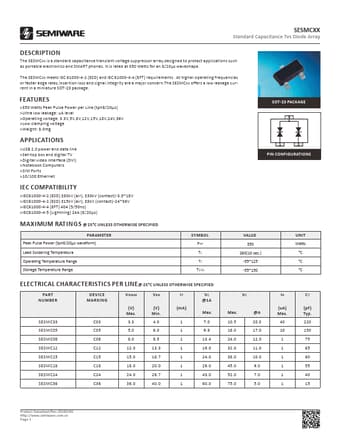

Full PDF Text Transcription

Click to expand full text
SESMCXX Standard Capacitance Tvs Diode Array DESCRIPTION The SESMCxx is a standard capacitance transient voltage suppressor array,designed to protect applications such as portable electronics and SMART phones. It is rated at 350 Watts for an 8/20µs waveshape. The SESMCxx meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements . At higher operating frequencies or faster edge rates,insertion loss and signal integrity are a major concern.The SESMCxx offers a low leakage current in a miniature SOT-23 package. FEATURES >350 Watts Peak Pulse Power per Line (tp=8/20µs) >Ultra low leakage: uA level >Operating voltage: 3.3V,5V,8V,12V,15V,18V,24V,36V >Low clamping voltage >Weight: 8.0mg SOT-23 PACKAGE APPLICATIONS >USB 2.
